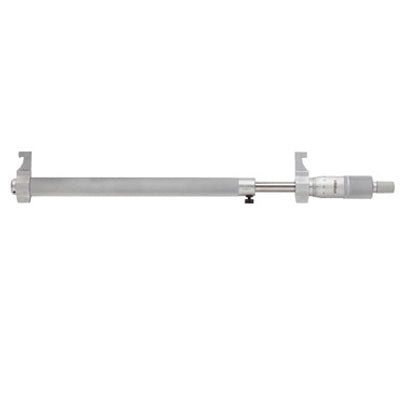

Mitutoyo Caliper Jaw Inside Micrometer 175-200mm 145-192

Roll over image to zoom in Click on image to zoom

Mitutoyo Caliper Jaw Inside Micrometer 175-200mm 145-192

Name: Mitutoyo Caliper Jaw Inside Micrometer 175-200mm 145-192
Brand: Mitutoyo
SKU: 145-192
Price: 515.0 GBP
Availability: InStock

MitutoyoSKU: 145-192

List price: £706.00 Offer price: £515.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10 +£41.00 Part number: 156-101-10 → View product

Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10 +£31.00 Part number: 156-105-10 → View product

Mitutoyo Micrometer Holder For Use with 345145 Series Inside Micrometers 300400 +£11.90 Part number: 300400 → View product

Mitutoyo Micrometer STAND CAP For Use with 345/145 Series Inside Micrometers 300400 +£4.00 Part number: 300401 → View product

Setting Ring 175mm 177-302 +£847.00 Part number: 177-302 → View product

Overview Technical Information Applications Videos & Documents

The Caliper Jaw Inside Micrometer offers you the following benefits:

Carbide measuring faces
A setting standard (optional) is needed to accurately set the micrometer to the reference point.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Caliper Jaw Inside Micrometer 175-200mm 145-192 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	175-200 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±10µm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring spindle:	With spindle lock, spindle pitch 0,5 mm
Measuring face:	Carbide tipped
Measuring force:	1-6 N

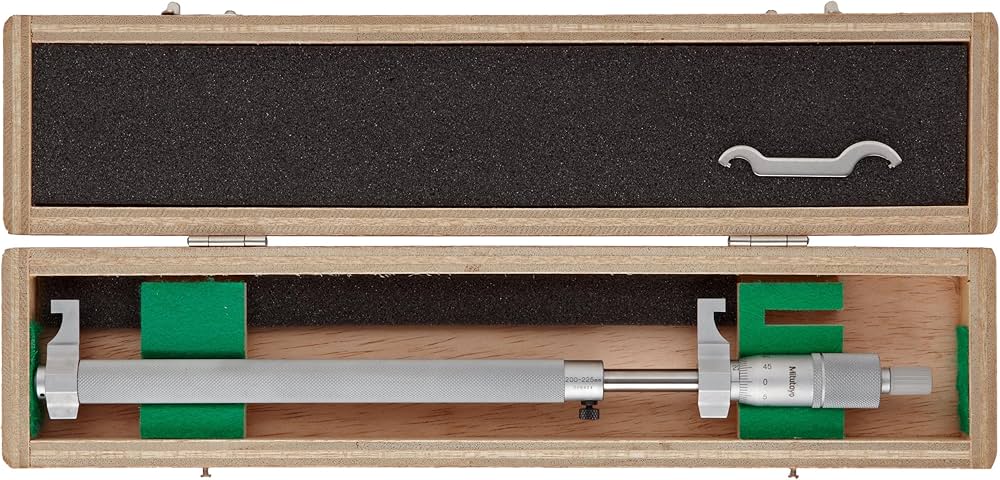

Delivered:	Including box, key
Delivered:	Including box, spanner, setting standard is not included
Mass:	180 g
