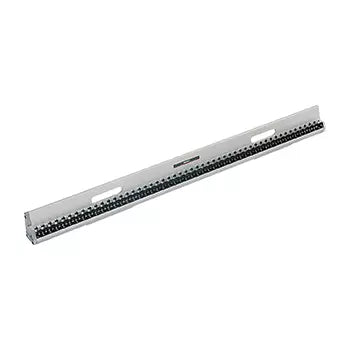

515-743 Mitutoyo High-Accuracy Steel Check Master HMC-H: 1000mm
The Mitutoyo 515-743 High-Accuracy Steel Check Master HMC-H has the following specifications:
- Range: 1000mm
- Type: Steel
- Accuracy of Block Pitch 0-300mm: +/- .0012mm
- Accuracy of Block Pitch 300-600mm: +/- .0018mm
- Accuracy of Block Pitch 600-1000mm: +/- .0025mm
Features:
- Designed to check the accuracy of table movements of machine tools and calibrate CMMs. Permanently wrung stack of gage blocks is housed in a rigid frame.
- Can be used in either vertical and horizontal orientation.
- Fitted wooden case supplied.
Specifications for Ceramic Check Master:
- Each measuring block is made of zirconia-based ceramic that requires no anti-corrosion treatment for measuring faces.
- Free from deterioration and dimensional changes over time
No technical information is currently available.
No application information is currently available.
