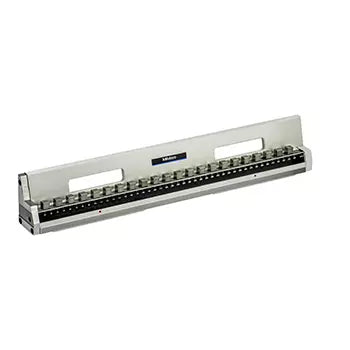

515-731 Mitutoyo High-Accuracy Steel Check Master HMC-H: 18?

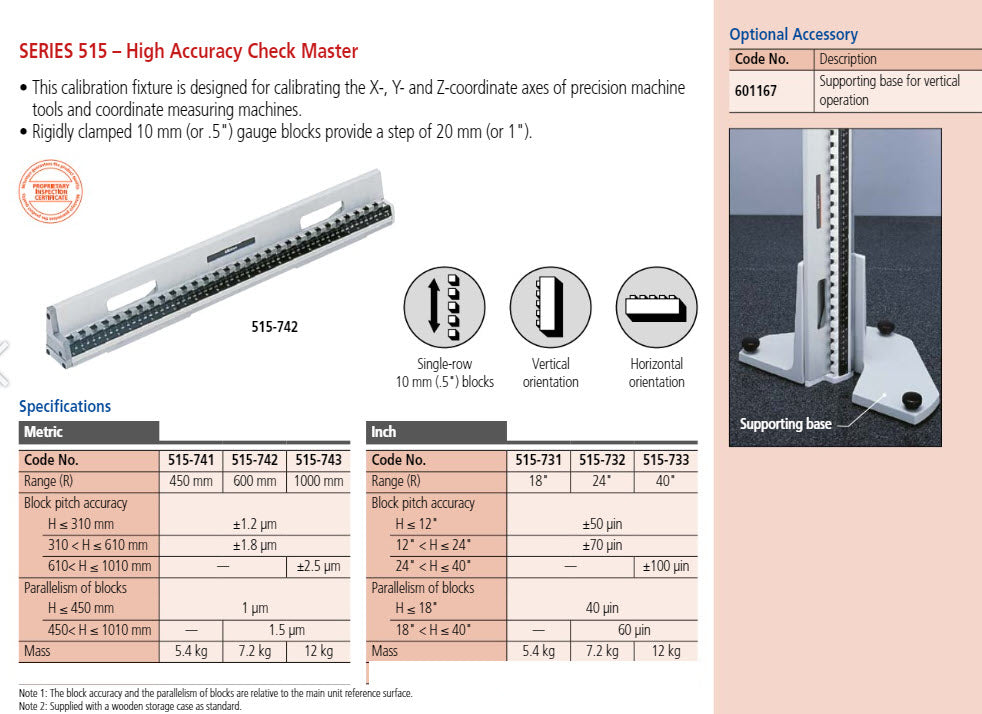

The Mitutoyo 515-731 High-Accuracy Steel Check Master HMC-H has the following specifications:
- Range: 18?
- Type: Steel
- Accuracy of Block Pitch 0-12?: +/- .000047?
- Accuracy of Block Pitch 12-24?: +/- .000071?
Features:
- Designed to check the accuracy of table movements of machine tools and calibrate CMMs. Permanently wrung stack of gage blocks is housed in a rigid frame.
- Can be used in either vertical and horizontal orientation.
- Fitted wooden case supplied.
Specifications for Ceramic Check Master:
- Each measuring block is made of zirconia-based ceramic that requires no anti-corrosion treatment for measuring faces.
- Free from deterioration and dimensional changes over time.
No technical information is currently available.
No application information is currently available.
