Description
Automatic video measuring machines CHT series covers different measurement ranges offers powerful functionality and can perform precise measurements of surface dimensions, contours, angles, positions, and geometric tolerances for various complex parts.
Automatic video measuring machines CHT series can be used in machinery, electronics, mold, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connection Plug-ins, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical equipment, clocks, knives, measurement and testing, etc.
Automatic Report Generation
Automatically output SPC analysis report and support remote data docking
Measuerment Function
Extractdion Tools
Scanning to extract edge points, multi-segment edge point extraction,circular edge point extraction, ellipse extraction, frame selection to extract contour lines, focus points, closest points, etc.
Annotation Tools
Point, line, circle (center coordinates, radius, diameter), arc, center, angle, distance, line width, hole position, aperture, number of holes, distance from hole to hole, distance from hole to edge, distance from arc center to hole, the distance from the center of the arc to the side, the distance from the high point of the arc to the high point of the arc, and the distance from the intersection to the intersection, etc.
Construction
Intersection point, center point, extreme point, end point, line connecting two points, parallel line, perpendicular line, tangent line, bisector,Centerlines, line segment fusion, radius circle, three-line inscribed circle, two-line radius inscribed circle, etc.
GD&T
Straightness,roundness,profile,position,parallelism,symmetry, perpendicularity, concentricity and other form and position tolerance evaluation
Coordinate
Instrument coordinate system, point to line, point to point, line to line and other workpiece coordinate systems; image registration coordinate system;Can translate, rotate, manually adjust the coordinate system
Special tools
R angle,horizontal pitch,circumferential pitch,screen,slot,contour comparison,spring,O-ring and other special tools for rapid measurement .
Support tolerance batch setting, scale classification, and color custom management
Easy to operate
Flexible shooting and precise calculation
Support segmental programming control of surface light, transmitted light and coaxial light , automatically identify the measurement position, and obtain uniform and stable measurement results every time.
-
Ring light
-
Back light
-
Coaxial light
-
Surface features are clear
-
Easy to measure profile features
-
Measure diameter of blind hole
- Auto batch measurement
- The program matches the coordinate system of the workpiece, automatically executes the measurement process,supports the import of CAD drawings and Gerber drawings, and coordinates system matching measurement;
- In the CNC fixed coordinate system mode, batch measurement can be performed quickly and accurately.
Import CAD drawing to build a program
CNC batch measurement
- Various accessories
- Equips a touch probe or optical probe to measure height and flatness and realize 2.5D space measurement;
- Supports external input from digital calipers and height gauges; Supports label printers.
Height measurement
Flatness measurement
Height result
Flatness result

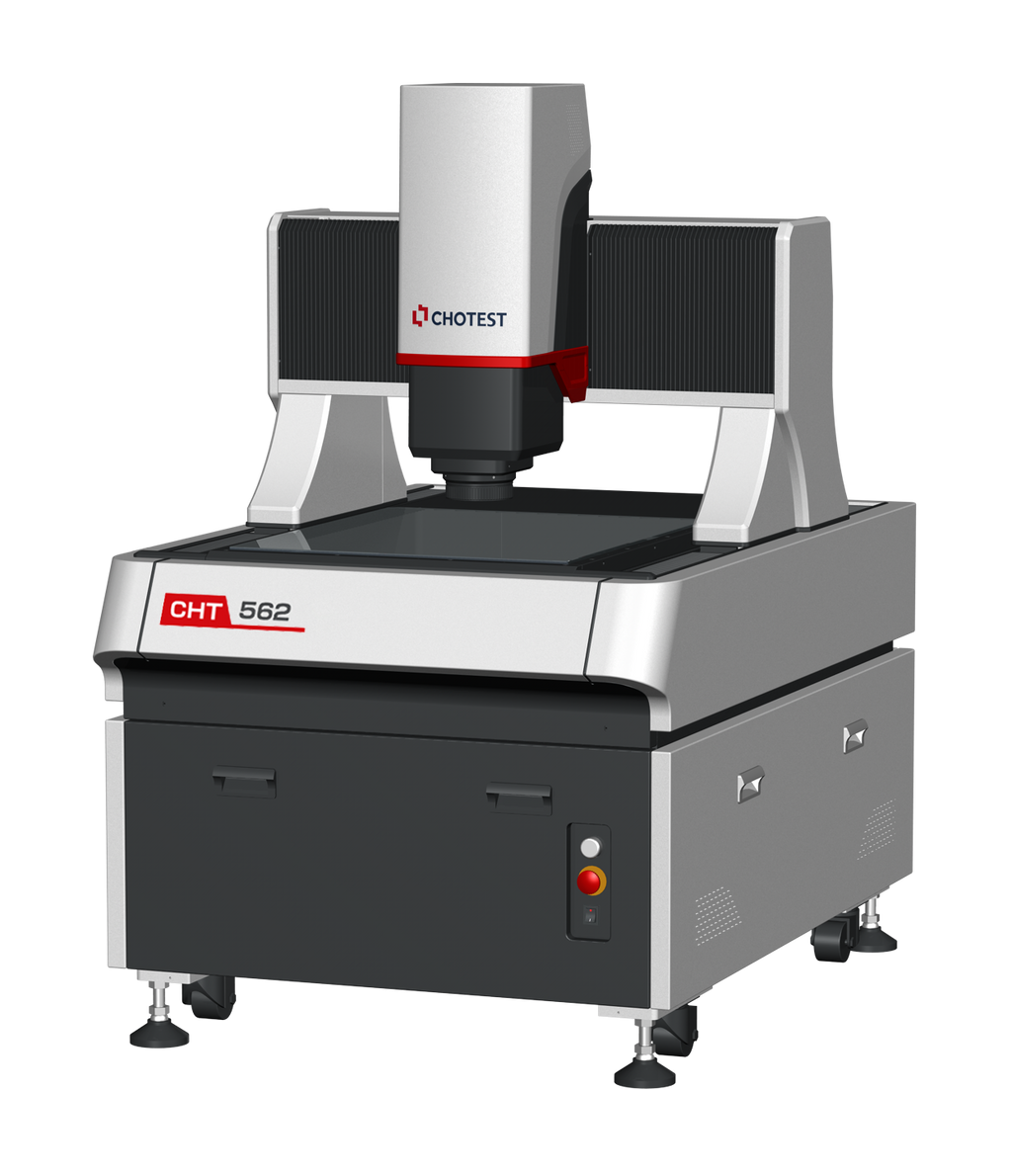

| Model No. | CHT562 | ||
| Travel Range | X(mm) | 500 | |
| Y(mm) | 600 | ||
| Z(mm) | 200 | ||
| Structure Type | Bridge | ||
| Base Material | Granite | ||
| Monitor | 24" LCD(1920×1080) | ||
| Image Sensor | 1.6MP High definition colorful industrial camera | ||
| Resolution of Glass scale | 0.1μm | ||
| Lens | 8.3X motroized lens | ||
| Magnification | Optical Zoom: 0.6X~5.0X， Image Zoom: 27~229X | ||
| Light | Back light | Telecentric transmission illumination | |
| Ring Light | 6 rings and 8 segments (256 levels) surface light | ||
| Coaxial Light | LED | ||
| Accuracy*1 | X/Y | (2.5+L/200)μm | |
| X⊥Y | (3.0+L/200)μm | ||
| Z*2 | (4.5+L/200)μm | ||
| Max Speed | XY | 500mm/s | |
| Z | 100mm/s | ||
| Height Meas. (Optical Probe) (Optional) |
Measuring Range(X*Y) | 400*600mm | |
| Max Depth/Diameter(H/Φ) |
1.64 |
||
| Dia. of Beam | Φ100μm(Φ18μm optional) | ||
| Resolution | 0.25μm | ||
| Z Non-movetment |
Range(Z) | ±2mm | |
| Accuracy | ±2μm | ||
| Z Movetment |
Range(Z) | 200mm | |
| Accuracy | ±(6+0.01H)μm, H is Z movement height in mm | ||
| Size | 1100×1600×1700mm | ||
| Weight | 1500kg | ||
| Loading Capacity | 25kg | ||
| Power | 2500W | ||
| Sensor Option | (1)Touch probe； (2)Optical probe | ||
| Motion Control | Servo control system | ||
| Software | VisionX | ||
| Input | AC200-240V, 50/60Hz | ||
| Working Environment | Temp.20℃ ±2℃ , Humidity 20~80%, Vibration<0.002g, Less than 15Hz | ||
| Note: *1 In the focus position, the environment temperature is +20 °C ± 1.0 °C, and the load on the table is 5 kg or less; L is the moving range of the table in mm. *2 It is mechanical accuracy, and actual accuracy depends on object surface where lens focuses. |
|||
|
|
||
