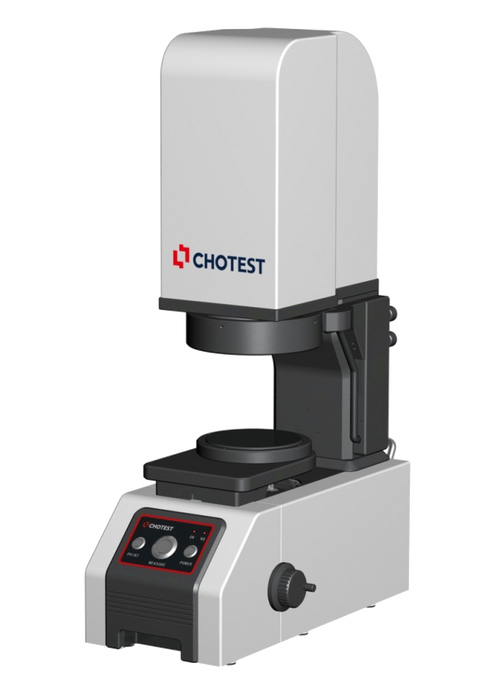

Chotest VX1060 Flash Measuring Machine ?60mm FOV Accuracy ±3um, Sensor 20M CMOS

Description

Parameters

Model No.		VX1060	VX1100
Image Senor		20M CMOS
Monitor		24" LCD (XGA:1920×1080)
Acceptance Lens		Double Telecentric Lens
Light	Ring Light	Four-segment illumination(White Light,Manual up & down)
	Back Light	Telecentric transmission illumination(Green Light)
F.O.V.		?60mm	?100mm
Repeatability of Image Meas.		±1um	±1?m
Accuracy of Image Meas.*1		±2um	±3um
Software		VisionX
Resolution		0.1?m
Z-Axis Travel Range		35mm
Loading Capacity		5KG
Size(LxWxH)		500×280×670mm
Weight		25kg
Input		AC100~240V, 50~60Hz,10A,300W
Working Environment		Temp.10?~35?, Humidity 20%?80%, Vibration<0.002g, Less than 15Hz
Remark: *1 In the focus position, the environment temperature is +20 °C ± 1.0 °C

VisionX software provides up to 80 extraction analysis tools, including [Feature Extraction] (such as maximum points, centerlines, arcs, peaks, etc.), [Accessory Tools] (such as any dot & line & circle, fitted straight line, Fit circle, tangent, inscribed circle, etc.), [Smart Labeling], [shape tolerance] , special [Application Tool] (such as pitch distance, pitch angle, slot, thread, round cross, down Angle, rounded corners, etc.)

The measurement results and their main statistical values (such as average, ?, 3?, 6?, Ca, Cp, Cpk, etc.) will be automatically recorded and archived. Operators can select different filter conditions for history extraction.

The trend graph displays the regular trend of the measured values, such as the monotonic and periodic change of the measured values, which can be used for monitoring the abnormality of the production process of producing equipment. Reflecting the status and distribution of fluctuations in product quality, the histogram can intuitively expose information about the quality situation in producing process, which can be used to predict product quality and failure rate.

Through quality diagnosis and analysis with statistical methods, SPC can monitor the product quality and changing trend of the producing process. With SPC we can find the preventive solution in the producing process, so that the subsequent inspection and repair are reduced. Consequently, the producing process control and product quality improvement are achieved.
