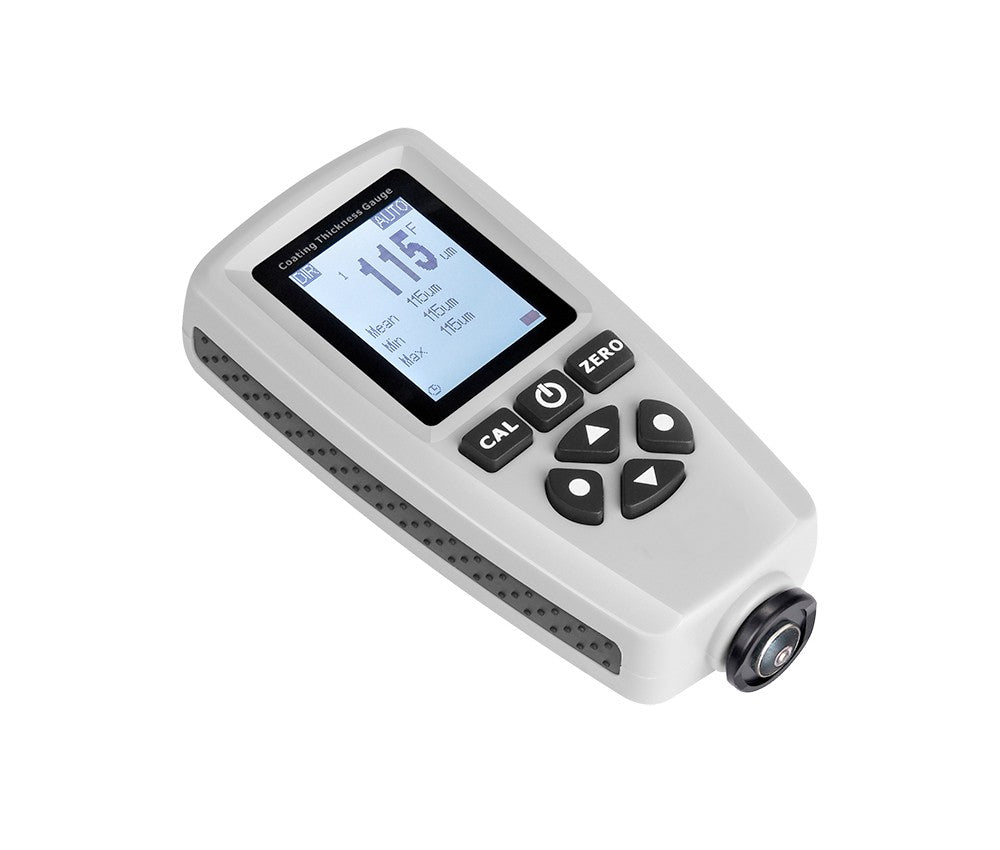

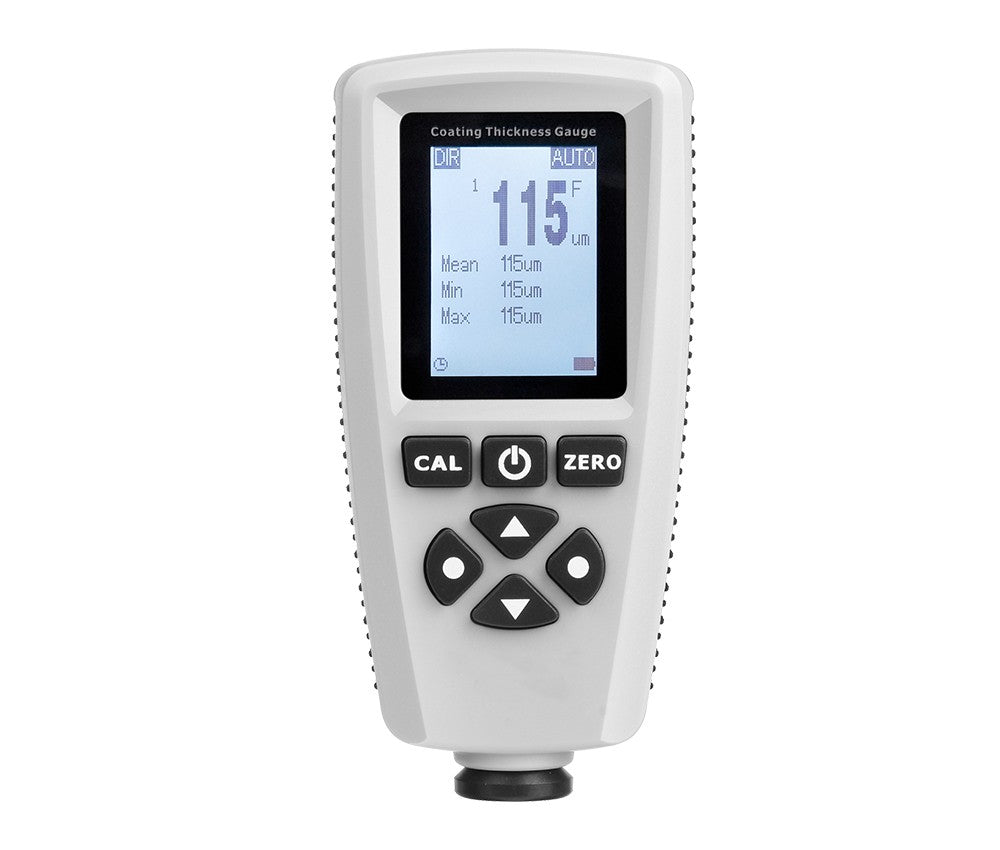

These gauges can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.
?Features and Functions?
· Range 0~1500um, accuracy ±(1%±1)um
· 128*128dots LCD display
· Menu interface

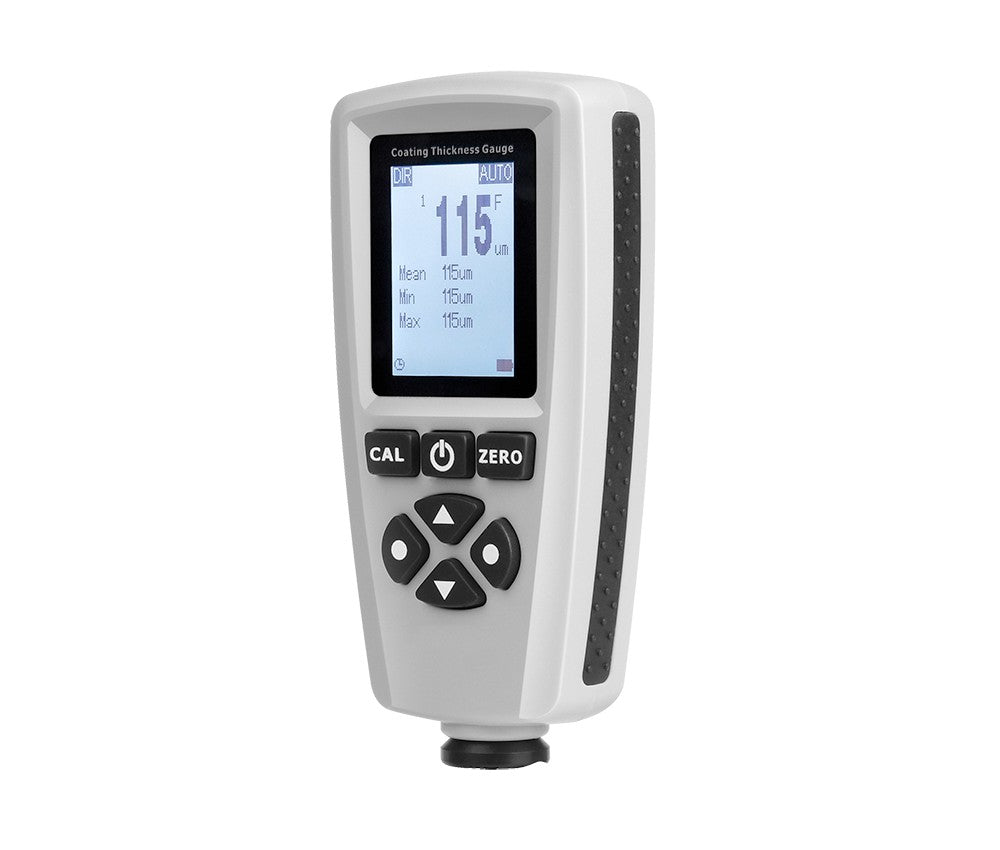

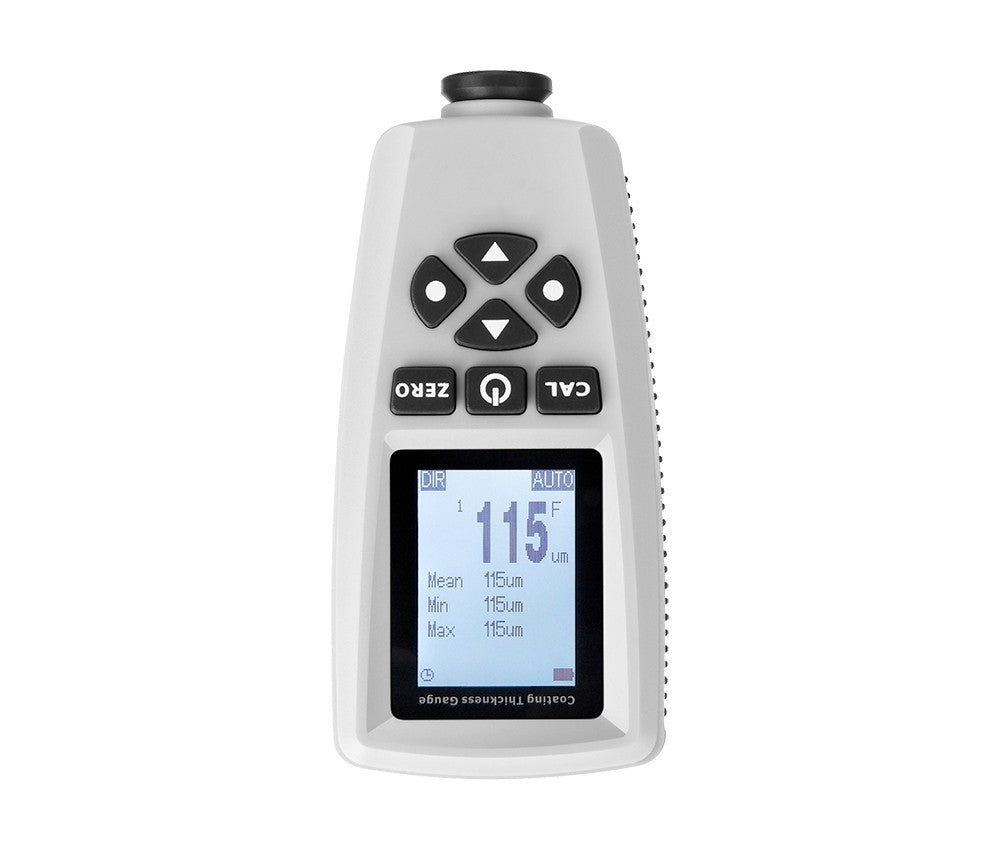

· LCD can be rotated to be used easily
· Red LED alarm indication
· LCD shows mean, maximum, minimum and standard deviation
· User can set alarm limit
· Readings can be stored, recalled and deleted
· Easy to do zero calibration and support multi-point calibration
· Connect with PC via USB and download readings
· Multi-language supported
· Up to 5 measurement groups supported
· Automatically detect the substrates type(F or N)
· Unit optional: um, mm and mils
?APPLICATION?
Coating thickness testing for car paint, electroplating, surface technology, pipeline anticorrosion coating, mechanical equipment surface anticorrosion, chemical equipment and quality control.
?Specifications and Selection Guide?
|
Model no. |
PT-770 |
PT-770S |
PT-770E (with external probe)
|
PT-500APT |
PT-500AE (with external probe)
|
PT-500E |
|
Probe type |
Fe NFe
|
Fe NFe
|
Fe NFe
|
Fe NFe
|
Fe NFe
|
Fe NFe
|
|
Principle |
Magnetic induction Eddy currents
|
Magnetic induction Eddy currents
|
Magnetic induction Eddy currents
|
Magnetic induction Eddy currents
|
Magnetic induction Eddy currents
|
Magnetic induction Eddy currents
|
|
Range |
0~2000um |
0~2000um |
0~2000um |
0~1500um |
0~1500um |
0~1500um |
|
Accuracy |
±(2.5%+1um) |
±(2%+1um) |
±(2.5%+1um) |
±(3%+1um) |
±(3%+1um) |
±(3%+1um) |
|
Resolution |
0~99.9um(0.1m), others(1um)
|
0~99.9um(0.1m), others(1um)
|
0~99.9um(0.1m), others(1um)
|
0~99.9um(0.1m), others(1um)
|
0~99.9um(0.1m), others(1um)
|
0~99.9um(0.1m), others(1um)
|
|
Readings memory |
320 |
2000 |
320 |
|||
|
Interface |
USB |
USB |
USB |
|||
|
Size/Weight |
113X53X24mm/80g |
113X53X24mm/80g |
113X53X24mm/144g |
116X53X24mm/84g |
116X53X24mm/146g |
116X53X24mm/144g |
|
Power supply: 2pcs 1.5v AAA batteries |
||||||
|
Interface: USB |
||||||
