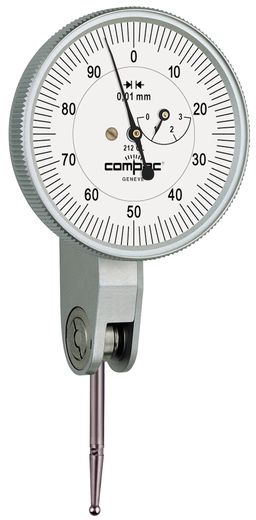

Compac, Brown & Sharpe TESA Long Stylus 212GL Lever Dial Test Indicator, Horizontal Type, M1.6 Thread, 4mm Stem Dia., White Dial, 0-50-100 Reading, 40mm Dial Dia., 0-3mm Range, 0.01mm Graduation, +/-0.026mm Accuracy, Long Stylus 36mm

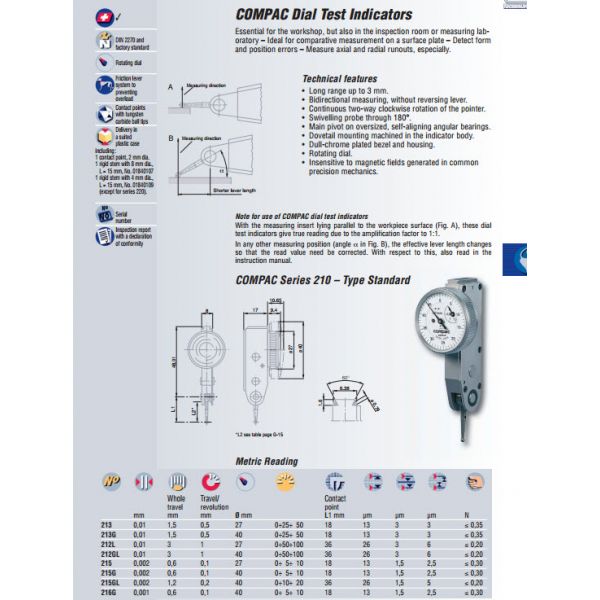

COMPAC Dial Test Indicators

Essential for the workshop, but also in the inspection room or measuring laboratory
– Ideal for comparative measurement on a surface plate– Detect form and position errors – Measure axial and radial runouts, especially.

Technical Features
–– Long measuring travel, up to 3 mm.
–– Bidirectional measuring, without reversing lever.
–– Same rotation direction of pointers in the two measuring directions (clockwise pointer direction).
–– Swivelling probe through 180°.
–– Main pivot on self-aligning angular bearings, dimensioned oversize.
–– Dovetail mounting machined in the indicator housing.
–– Dull chrome-plated bezel and housing.
–– Rotating dial.
–– Insensitive to magnetic fields generated in mechanical workshops.
