Lever Indicators Compac Test Indicator 21 Series
Swiss made to traditional quality and precision
Wide range with revolution counter
Bi-directional contact point with automatic reversal
Unibody construction
Dovetails top front and back
High rigidity
Body and dial ring dull chrome plated
Choice of range and dial diameter
Supplied with 1/4" and 5/32" dovetail attachments
Swiss made to traditional quality and precision
Wide range with revolution counter
Bi-directional contact point with automatic reversal
Unibody construction
Dovetails top front and back
High rigidity
Body and dial ring dull chrome plated
Choice of range and dial diameter
Supplied with 1/4" and 5/32" dovetail attachments

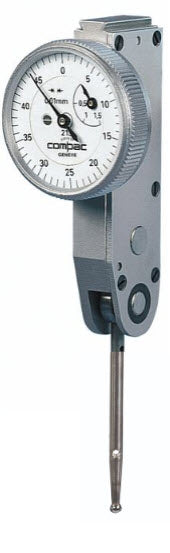

Brown & Sharpe TESA 212L Compac Lever Dial Test Indicator, Horizontal Type
| Style of Indicator | Lever Horizontal Test Indicators Metric Long Stylus |
|---|---|
| Face Diameter | 27mm |
| Measurement units | Metric |
| Indicator Range | 3mm |
| Measuring Range | 3mm |
| Graduation | .01mm |
| Dial Reading | 0-50-100 |
| Stylus Length | 36mm |
| Digital, Non-Digital | Non-Digital |
| Measuring Force | .2N |
