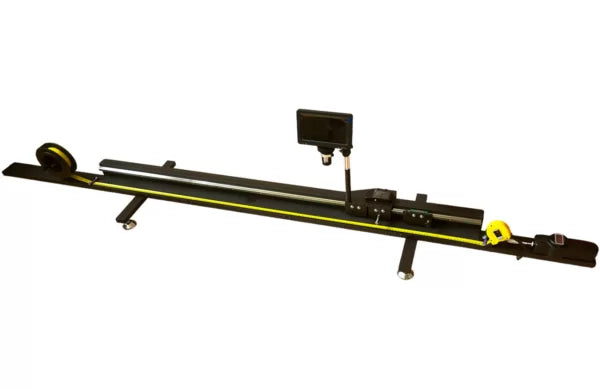

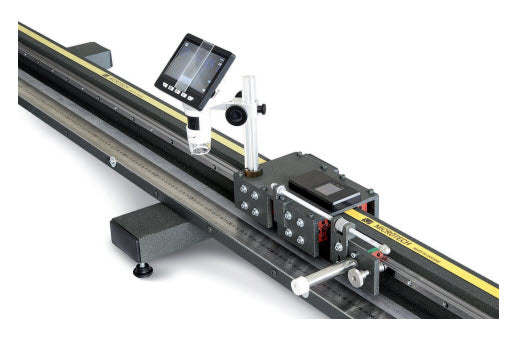

Computerized ruler & tape calibrator Wireless with LED microscope

Line measure is an ideal calibration solution for measuring scale & tape. In the field of engineering measuring tapes & scales play an important role & precision are important for marking large components correctly.
Scales & tape are widely used for measurement in the field of civil, mechanical & textile industry.
The instrument calibrates different sizes of tapes & scales with high precision for maintaining high standards and measurement up to 1000mm.
Features
Meets IS 1269 Part 2 requirement
Higher accuracy & repeatability

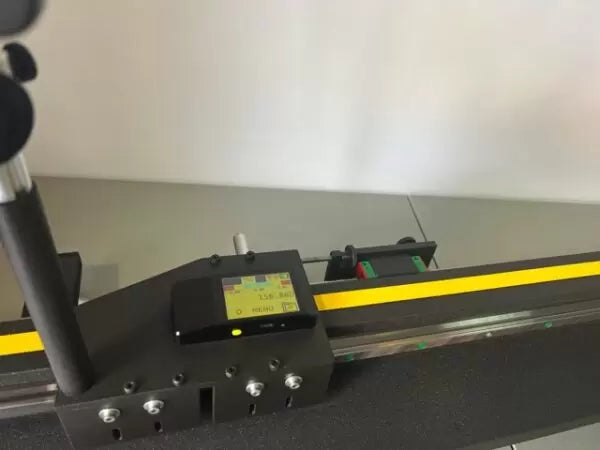

High precision digital measuring system
with 0.001mm resolution
The machine base is designed to ensure friction less when tapes are stretched under
tension of 50 N & above
High Accuracy CCD camera
Compact & user friendly

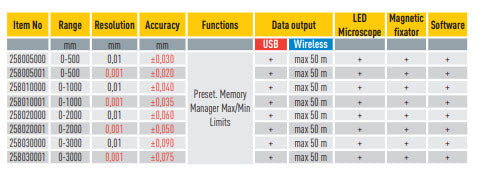

Range 0 to 1000mm
Resolution 0.001/0.005 mm(selectable)
Overall Dimension approx. 1500 x 300 x 400mm
Display System PC Based

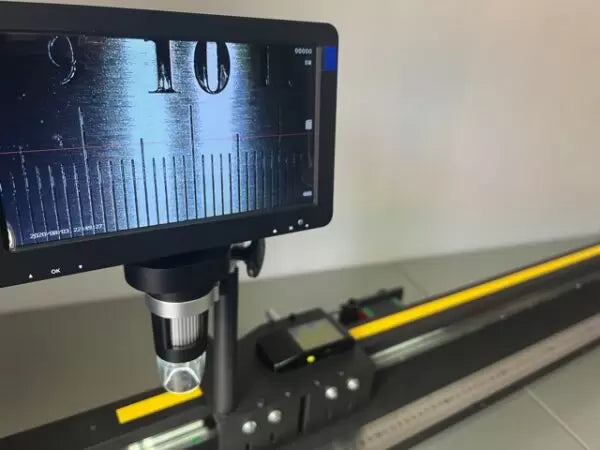

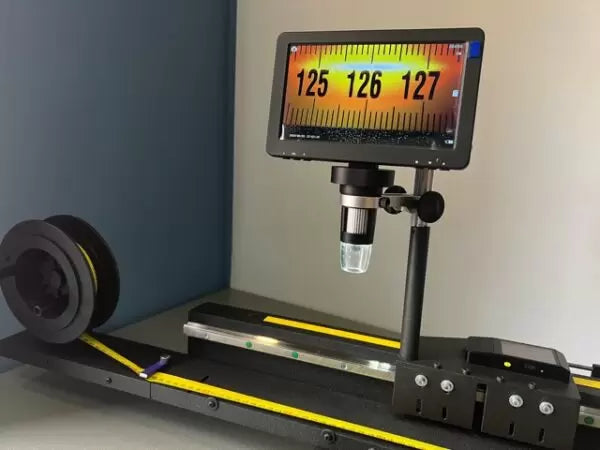

Microscope Magnification 20X
