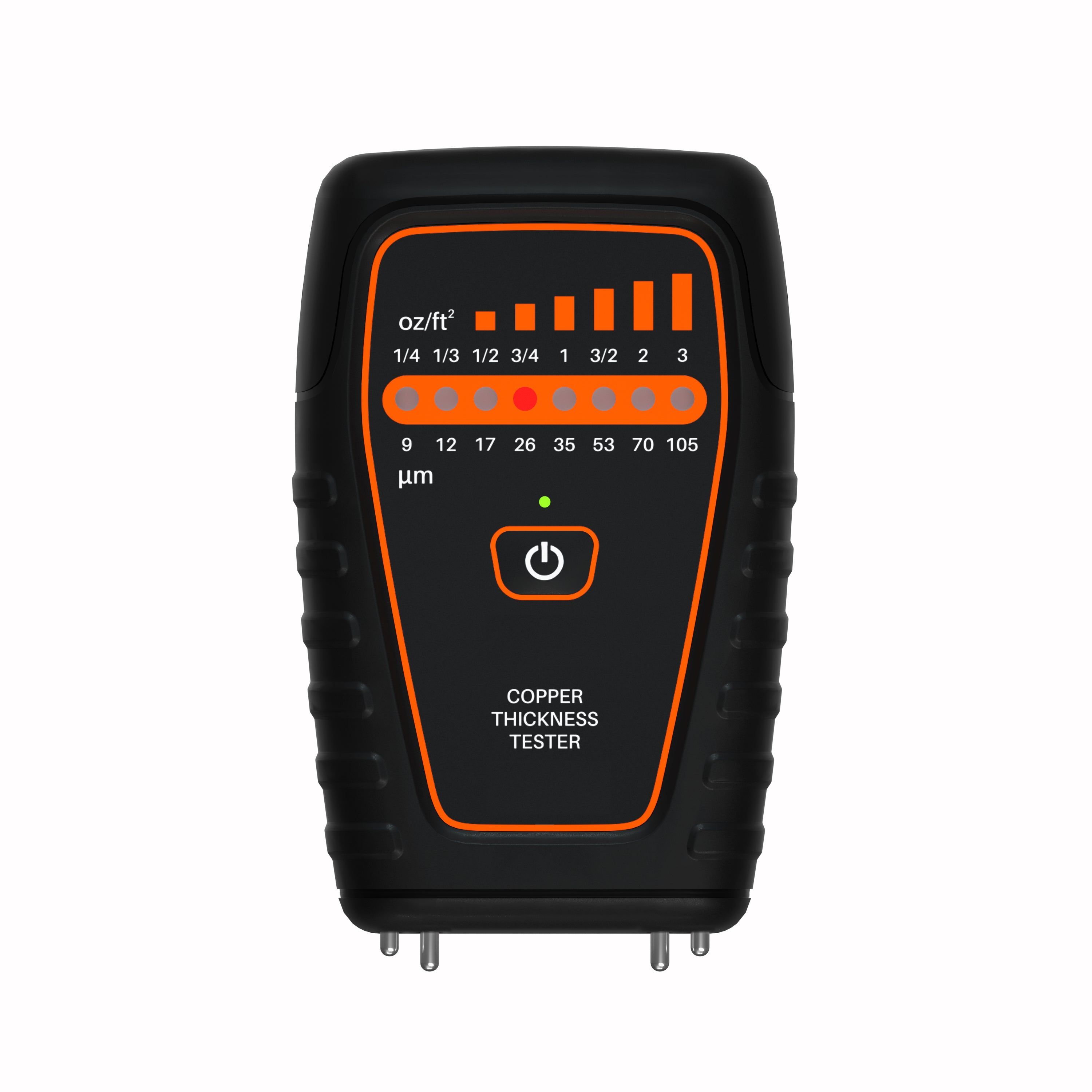

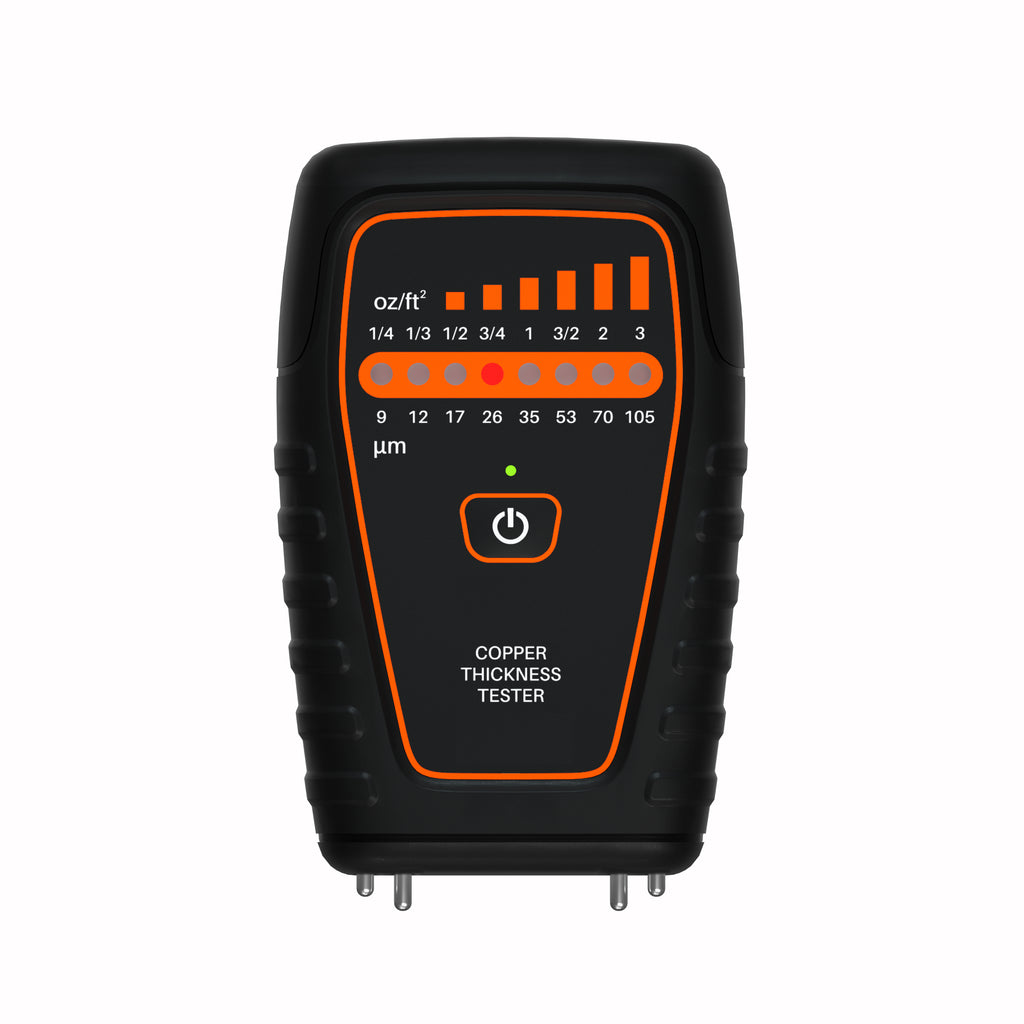

Copper foil thickness gauge EC-3000 Copper Thickness Tester Measuring range 0—122μm(0—3.5oz/ft2) Metric units(μm) 9,12,17,26,35,53,70,105 Imperial units(oz/ft2) 1/4,1/3,1/2,3/4,1,3/2,2,3 Unit oz/ft2,μm

EC-3000 is a handheld copper foil graded thickness gauge. The instrument uses the principle of micro-resistance to measure the thickness of copper foil on the printed circuit board, which can be used to detect the thickness of copper foil on the surface of PCB, CCL or FPC.

EC-3000 has sound and light prompt function, and the measurement result is indicated by LED. The instrument "di" sound prompts the completion of the measurement, and the LED light corresponding to the thickness value is lit at the same time.

EC-3000 is small in size and can be carried anywhere.
