Mitutoyo Crimp Height Micrometer 0-25mm 112-401
Mitutoyo Crimp Height Micrometer 0-25mm 112-401
Mitutoyo Crimp Height Micrometer 0-25mm 112-401
Roll over image to zoom in Click on image to zoom
Photo 1 of 3 More photos — use the arrows
Mitutoyo Crimp Height Micrometer 0-25mm 112-401Mitutoyo Crimp Height Micrometer 0-25mm 112-401Mitutoyo Crimp Height Micrometer 0-25mm 112-401

Mitutoyo Crimp Height Micrometer 0-25mm 112-401

MitutoyoSKU: 112-401
List price: £217.00 Offer price: £158.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0
Part number: 516-106-10  → View product
MMI-10 Micrometer Checker Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product

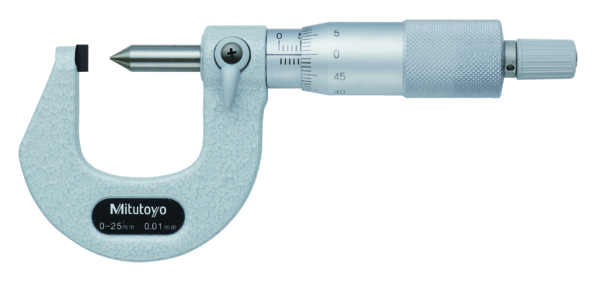

A Mitutoyo non-digital micrometer provided with pointed spindle to enable measurement of the crimp height of electrical contacts. A ratchet stop guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner
Inch-Metric:
Metric
Range:
0 - 25 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±3 µm
Measuring face:
Hardened steel, micro-lap finish
Measuring spindle:
With spindle lock,
ø 6.35 mm, spindle pitch 0.5 mm (342-271-30, 112-401)
without spindle lock
ø 6.35 mm, spindle pitch (342-451-20) 10 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Power supply:
1 battery SR-44
Battery life:
Appr. 2.4 years (342-271-30),
5 years under normal use
(342-451-20)
Delivered:
Including box, 1 battery
Mass:
165 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Crimp Height Micrometer 0-25mm 112-401 Click to open the PDF document
