Deltronic HTM24 Class X Pin Gauge Sets. 0.005mm Steps Code HTM24-21.26-25.585, Range 21.2600 - 25.6700mm

Roll over image to zoom in Click on image to zoom

Deltronic HTM24 Class X Pin Gauge Sets. 0.005mm Steps Code HTM24-21.26-25.585, Range 21.2600 - 25.6700mm

Name: Deltronic HTM24 Class X Pin Gauge Sets. 0.005mm Steps Code HTM24-21.26-25.585, Range 21.2600 - 25.6700mm
Brand: Deltronic
SKU: HTM24-21.26-25.585
Price: 475.0 GBP
Availability: InStock

DeltronicSKU: HTM24-21.26-25.585

All prices exclude VAT, which will be added at checkout.

Price:

£475.00

Quantity:

The Deltronic Class X Gage set is a unique combination of plug gages offering hundreds of combinations for qualifying hole sizes in and around the nominal size.
You can choose any combination of Go/ No-go tolerances or use the range to find the exact size of a hole.
This provides standards for zeroing comparators, setting snap gages, micrometer checking, hole center and layout determination, precision arbours for staging parts and checking runout of blanks.

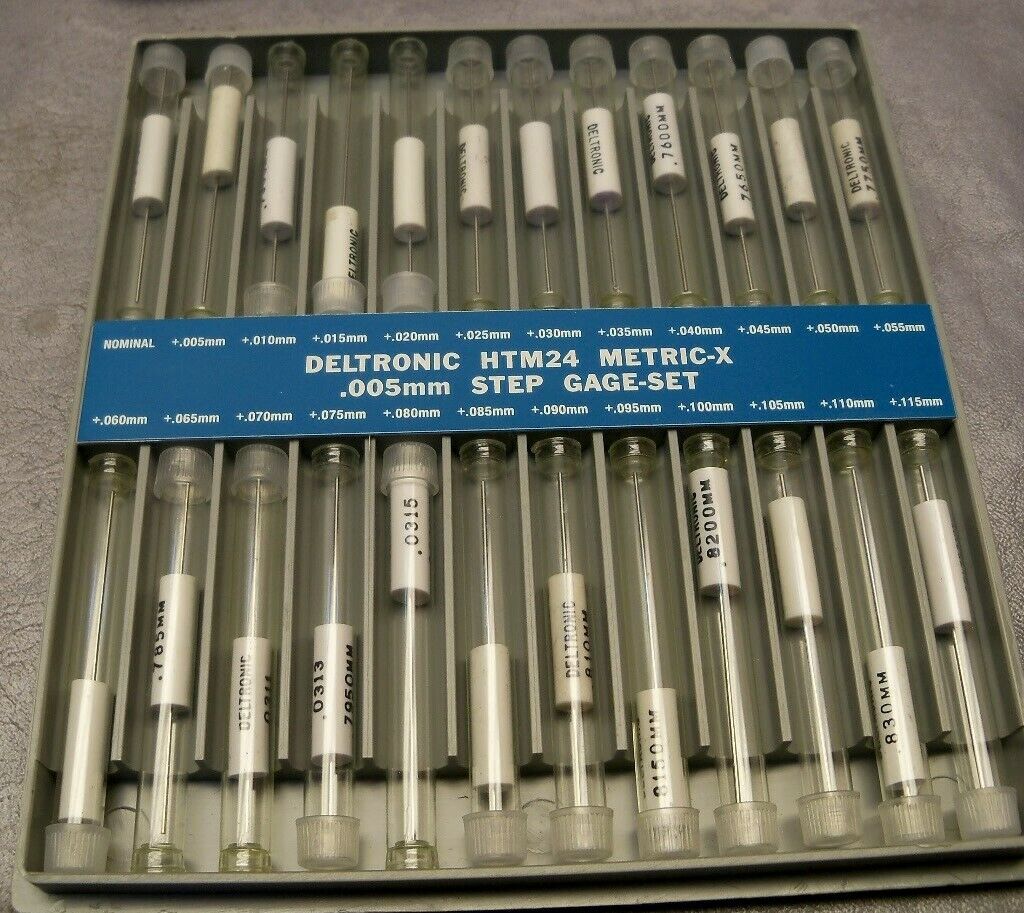

HTM24 - (.0050MM STEP) GAGE-SETS

24 Piece Set with a Nominal size gage plus 23 SIZES RANGING UPWARD in .005mm steps above the nominal
X" Tolerance PLUS (+0.001mm/-0.00000) Individual Plug Gauges
Select 24 pins from any range
Sets consist of nominal plus 23 gauges above in 0.005mm steps

Product Information
Part Number	HTM24-21.26-25.585
Accuracy	.001mm
Unit of Measurement	Metric
Items Per Set	24
Grade	Metric Class X
Type	Class X
Material	52100 Bearing Steel Centreless lapped to .0002mm microfinish, 60-62 Rc, Sizes and serial etched on each piece
Steps	.005mm
Tolerance	-0+.001mm
Product Description	Class X pin sets
Manufacturer	Deltronic
