Deltronic THH25 Class X Pin Gauge Sets. 0.001" Steps on Half Thousandth Code DTHH25-0165-0245, Range .0165 - .0245"

Roll over image to zoom in Click on image to zoom

Deltronic THH25 Class X Pin Gauge Sets. 0.001" Steps on Half Thousandth Code DTHH25-0165-0245, Range .0165 - .0245"

Name: Deltronic THH25 Class X Pin Gauge Sets. 0.001" Steps on Half Thousandth Code DTHH25-0165-0245, Range .0165 - .0245"
Brand: Deltronic
SKU: DTHH25-0165-0245
Price: 375.0 GBP
Availability: InStock

DeltronicSKU: DTHH25-0165-0245

All prices exclude VAT, which will be added at checkout.

Price:

£375.00

Quantity:

Deltronic "X" Plugs are available in .0001" steps
Sizes from .0040" thru 1.0120"
"Certificate of Accuracy" included
Gages are held to size within +.000040"/-.000000 (minus nothing)
Sizes from .0040” thru .1800” do not have a center relief.
Size marked Insul-Grips on sizes .0070” thru .0589”

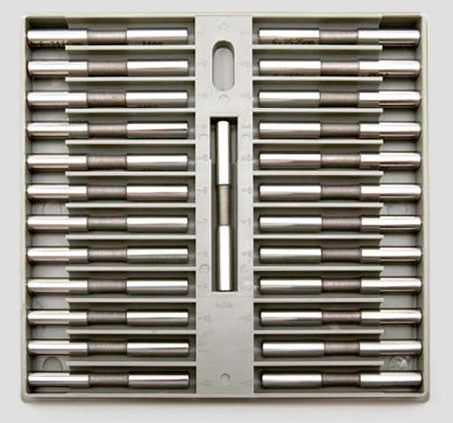

The THH25 25 Piece Sets consists of:
- Class "X" (+.000040", - Nothing) gages in .001" Steps on a half thousandth(.0005")
- (1) nominal in the center
- (12) gages UPWARD from the nominal and
- (12) gages DOWNWARD from the nominal
- 25 gage pins in Set
- *Sets Ship from the Factory in CA
Example - THH25 -.2245" Set includes:

a .2245 nominal with 12 gages up in .001" steps (i.e. .2255, .2265 etc.) and 12 gages down in steps of .001" (i.e. .2235, .2225 etc.)

Product Information
Part Number	DTHH25-0165-0245
Accuracy	.00004"
Unit of Measurement	Inch
Items Per Set	24
Grade	Inch Class X
Type	Class X
Material	52100 Bearing Steel Centreless lapped to .0002mm microfinish, 60-62 Rc, Sizes and serial etched on each piece
Steps	.001"
Tolerance	-0+.00004"
Product Description	Class X pin sets
