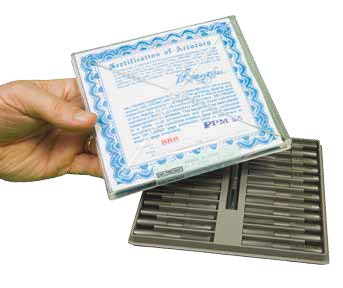

Deltronic THM25 Class X Pin Gauge Sets. 0.01mm Steps Code DTHM25-2.745-9.8325, Range 2.7450 - 9.8325mm

Roll over image to zoom in Click on image to zoom

Deltronic THM25 Class X Pin Gauge Sets. 0.01mm Steps Code DTHM25-2.745-9.8325, Range 2.7450 - 9.8325mm

Name: Deltronic THM25 Class X Pin Gauge Sets. 0.01mm Steps Code DTHM25-2.745-9.8325, Range 2.7450 - 9.8325mm
Brand: Deltronic
SKU: DTHM25-2.745-9.8325
Price: 290.0 GBP
Availability: InStock

DeltronicSKU: DTHM25-2.745-9.8325

All prices exclude VAT, which will be added at checkout.

Price:

£290.00

Quantity:

The Deltronic Class X Gage set is a unique combination of plug gages offering hundreds of combinations for qualifying hole sizes in and around the nominal size.
You can choose any combination of Go/ No-go tolerances or use the range to find the exact size of a hole.
This provides standards for zeroing comparators, setting snap gages, micrometer checking, hole center and layout determination, precision arbours for staging parts and checking runout of blanks.

THM25 - Metric "X” PLUS Gage-Sets contain:

25 Piece Set with a Center, Nominal size gage plus 12 SIZES RANGING UPWARD in .0100mm steps above the nominal, and 12 SIZES RANGING DOWNWARD in .0100mm steps below the nominal
X" Tolerance PLUS (+0.001mm/-0.00000) Individual Plug Gages

Product Information
Part Number	DTHM25-2.745-9.8325
Accuracy	.001mm
Unit of Measurement	Metric
Items Per Set	24
Grade	Metric Class X
Type	Class X
Material	52100 Bearing Steel Centreless lapped to .0002mm microfinish, 60-62 Rc, Sizes and serial etched on each piece
Steps	.01mm
Tolerance	-0+.001mm
Product Description	Class X pin sets
Manufacturer	Deltronic
