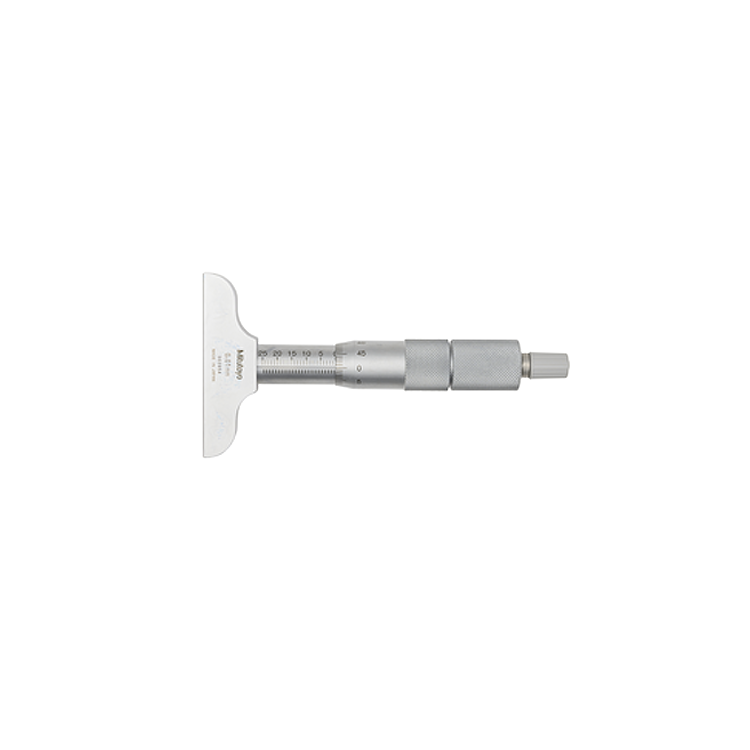

Mitutoyo Depth Micrometer, Interchangeable Rods 0-25mm, 63mm Base 129-154
Roll over image to zoom in Click on image to zoom
Mitutoyo Depth Micrometer, Interchangeable Rods 0-25mm, 63mm Base 129-154

Mitutoyo Depth Micrometer, Interchangeable Rods 0-25mm, 63mm Base 129-154

MitutoyoSKU: 129-154
Price: £70.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

This Mitutoyo interchangeable rod type micrometer can be used for wide range measurements. It offers you the following benefits:

  • ∅4 mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement.
  • The ratchet stop provides constant measuring force.
  • Measuring rod lock.
  • Range: 0-25mm
  • Resolution: 0.01mm
  • Accuracy: ± 0.003mm
  • Parallelism: 0.005mm
  • Base: 63.5mm x 16mm
  • Number of rods: 1
  • Metric

No application information is currently available.

Product Documents

Product Document Mitutoyo Depth Micrometer, Interchangeable Rods 0-25mm, 63mm Base 129-154 Click to open the PDF document
