Dial Gauge, ANSI/AGD Type Back Plunger Design, Reverse Dial Face, 0,2", 0,001" 1168A
Dial Gauge, ANSI/AGD Type Back Plunger Design, Reverse Dial Face, 0,2", 0,001" 1168A
Dial Gauge, ANSI/AGD Type Back Plunger Design, Reverse Dial Face, 0,2", 0,001" 1168A
Dial Gauge, ANSI/AGD Type Back Plunger Design, Reverse Dial Face, 0,2", 0,001" 1168A
Roll over image to zoom in Click on image to zoom
Dial Gauge, ANSI/AGD Type Back Plunger Design, Reverse Dial Face, 0,2", 0,001" 1168ADial Gauge, ANSI/AGD Type Back Plunger Design, Reverse Dial Face, 0,2", 0,001" 1168ADial Gauge, ANSI/AGD Type Back Plunger Design, Reverse Dial Face, 0,2", 0,001" 1168ADial Gauge, ANSI/AGD Type Back Plunger Design, Reverse Dial Face, 0,2", 0,001" 1168A

Dial Gauge, ANSI/AGD Type Back Plunger Design, Reverse Dial Face, 0,2", 0,001" 1168A

MitutoyoSKU: 1168A
List price: £171.00 Offer price: £108.00 Excluding VAT

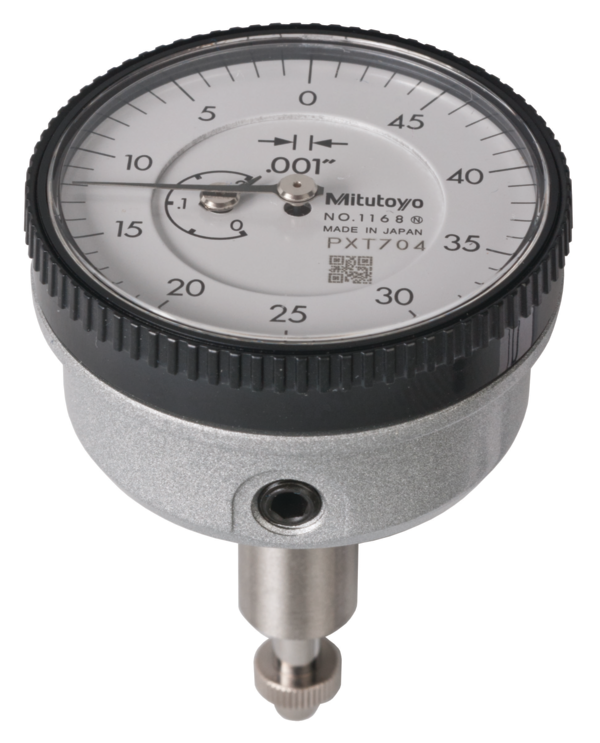

This is a back plunger, dial indicator with bezel ø 40 mm. It offers you the following benefits:
  • It is ideal for use in applications where space is limited.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Type:
ANSI/AGD Standard
Delivered:
With certificate of inspection
Range:
0,2 "
Range
per rev.:
0,05"
Graduation:
0.001"
H MPE (Hysteresis):
0,00033"
R MPE (Repeatability):
±0,0002"
MPE first one revolution:
±0,001"
MPE first 2 1/2 revolutions:
±0,001"
MPE > 2 1/2-10 revolutions:
±0,001"
Measuring force:
0,4-1,4 N
Mass:
80 g
Stem:
9.52 mm / 0.375"
Contact point:
Carbide tipped, th

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Dial Gauge, ANSI/AGD Type Back Plunger Design, Reverse Dial Face, 0,2", 0,001" 1168A Click to open the PDF document
