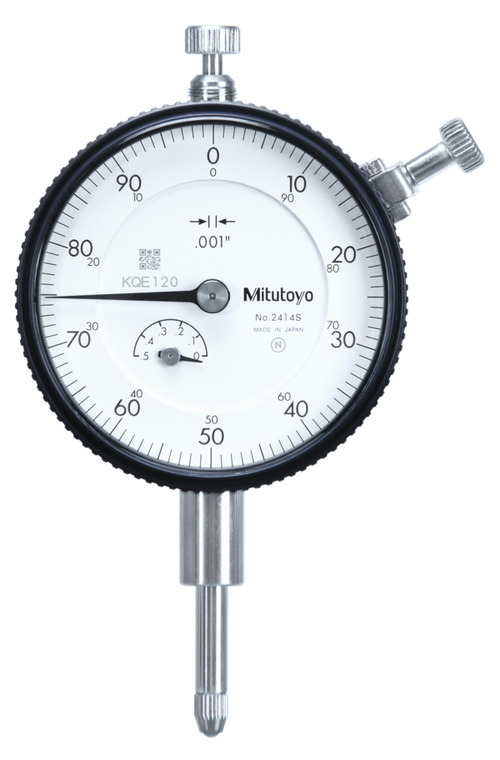

Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2414AB
Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2414AB
Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2414AB
Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2414AB
Roll over image to zoom in Click on image to zoom
Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2414ABDial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2414ABDial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2414ABDial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2414AB

Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2414AB

MitutoyoSKU: 2414AB
Price:
£63.00 £86.90



Standard Type, 0,5" / 0,125" Range, 0,001" / 0,005" Graduation - Inch

This is a standard, inch dial indicator. It offers you the following benefits:
  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Delivered:
With certificate of inspection, bezel clamp
Range:
0,5 "
Range
per rev.:
0,1"
Graduation:
0,001"
H MPE (Hysteresis):
0,0002"
R MPE (Repeatability):
±0,0002"
MPE first one revolution:
±0,001"
MPE first 2 1/2 revolutions:
±0,001"
MPE > 2 1/2-10 revolutions:
±0,001"
Type:
ANSI/AGD Standard
Measuring force:
0,4-1,8 N
Mass:
164 g
Stem:
9.52 mm / 0.375"
Contact point:
Carbide tipped, thread: 4-48UNF
Continuous dial:
Yes
