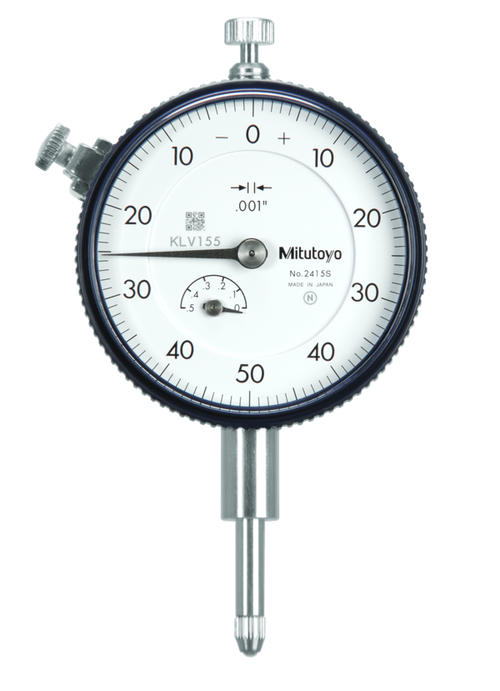

Name: Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2415AB
Brand: Mitutoyo
SKU: 2415AB
Price: 63.0 GBP
Availability: InStock

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

A Mitutoyo multi-revolution dial indicator suited to comparison measurement applications.

No technical information is currently available.

No application information is currently available.

Product Document 1 Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2415AB Click to open the PDF document

Product Document 2 Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2415AB Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Experienced engineers helping you select the correct measuring solution.

✔️

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation, commissioning and operator training available.

🤝

Technical support, servicing, repairs and ongoing customer care.

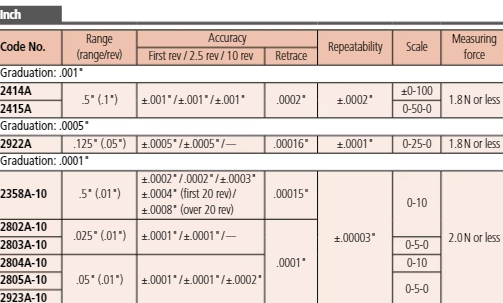

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,5 "
Range per rev.:	0,1"
Graduation:	0,001"
H MPE (Hysteresis):	0,0002"
R MPE (Repeatability):	±0,0002"
MPE first one revolution:	±0,001"
MPE first 2 1/2 revolutions:	±0,001"
MPE > 2 1/2-10 revolutions:	±0,001"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,8 N
Mass:	164 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF

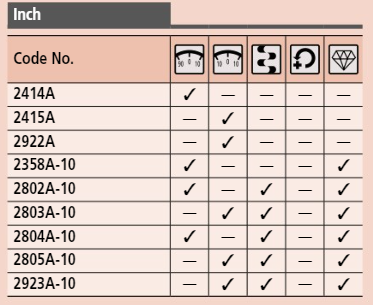

Balanced dial:	Yes
Continuous dial:	Yes
