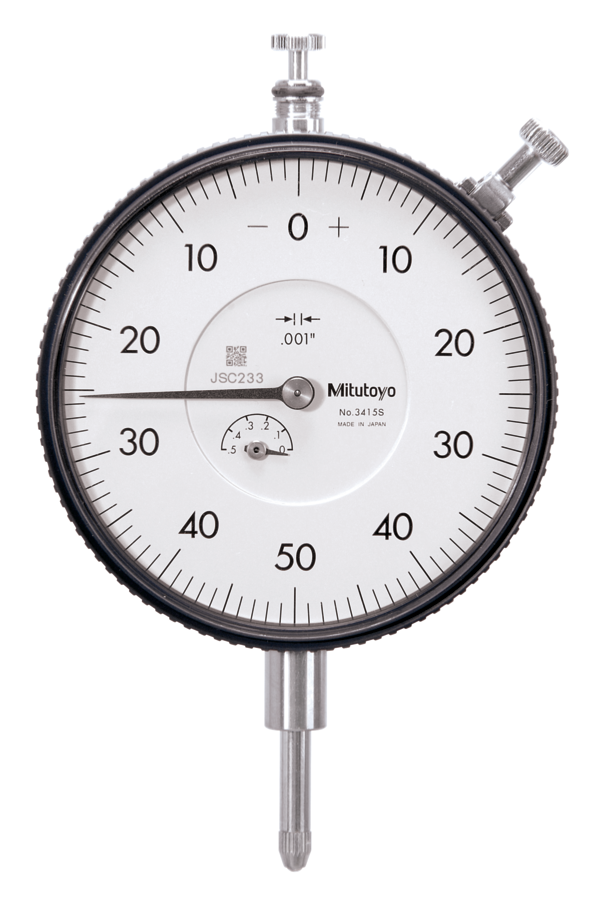

Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 3415AB

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 3415AB

Name: Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 3415AB
Brand: Mitutoyo
SKU: 3415AB
Price: 112.32 GBP
Availability: InStock

MitutoyoSKU: 3415AB

All prices exclude VAT, which will be added at checkout.

Price:

£112.32 £156.00

Quantity:

This is a standard, inch dial indicator. It offers you the following benefits:

Large-diameter dial face ø = 78 mm for easy reading
Supplied with limit markers and a bezel clamp as standard
0,001" / 0,0001" graduation

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	3415AB
Measuring Range	0.5"
Graduation	.001"
Accuracy	+/-.0002"
Unit of Measurement	Inch
Measuring Force	≤1.8N
Type	Lug Back
Repeatability	±.0002"
Dial Reading	0-50-0
Dial Face Size Ø	78mm
Hysteresis	.0002"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Flat back
Range Per Rev	.1"
Scale	0-50-0
Calibration Code	CAL14 B2

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,5 "
Range per rev.:	0,1"
Graduation:	0.001"
Accuracy:	±0.001"
H MPE (Hysteresis):	0,0002"
R MPE (Repeatability):	±0,0002"
Error of indication one revolution:	±0.001"
MPE first one revolution:	±0,001"
MPE first 2 1/2 revolutions:	±0,001"
MPE > 2 1/2-10 revolutions:	±0,001"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,8 N
Mass:	259 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Balanced dial:	Yes
Continuous dial:	Yes
