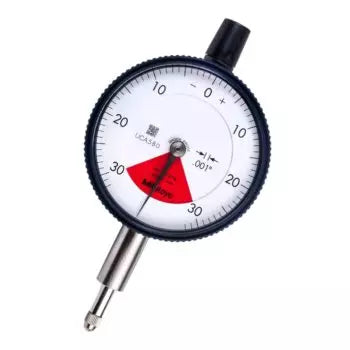

Dial Gauge, Flat Back, ANSI/AGD Type 2978AB Grad .001" x .06" Range

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ANSI/AGD Type 2978AB Grad .001" x .06" Range

Name: Dial Gauge, Flat Back, ANSI/AGD Type 2978AB Grad .001" x .06" Range
Brand: Mitutoyo
SKU: 2978AB
Price: 74.0 GBP
Availability: InStock

MitutoyoSKU: 2978AB

All prices exclude VAT, which will be added at checkout.

Price:

£74.00 £101.00

Quantity:

2978AB Mitutoyo Dial Indicator Standard One Rev Type for Error-free Reading: 0-.06″

The Mitutoyo 2978AB Dial Indicator One Revolution Type for Error-free reading has the following specifications:

Range: 0-.06″
Full Stroke: 0-.079″
Graduations: .001″
Dial Reading: 30-0-30
Type: flat back
Accuracy: +/- .001″
Measuring Force: 0.4-1.4N
Stem/Shank: 3/8″
Contact Point: #4-48 UNF Thread
Type: ANSI/AGD
One Revolution Type: Yes
Shockproof Type: Yes
Dustproof Type: Yes
Jewelled Bearing Type: No

Customer Support

Contact our customer support team via email or call our hotline number

Phone - 02476 644661

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2978AB
Measuring Ranges	0.06"
Graduation	.0001"
Accuracy	.001"
Unit of Measurement	Inch
Measuring Force	≤1.4N
Type	Flat Back
Repeatability	±.0002"
Dial Reading	30-0-30
Hysteresis	.0002"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Centre Lug Back
Range Per Rev	.079"
Scale	30-0-30
Manufacturer	Mitutoyo
