MitutoyoSKU: 3428AB-19
List price: £377.00 Offer price: £275.00 Excluding VAT

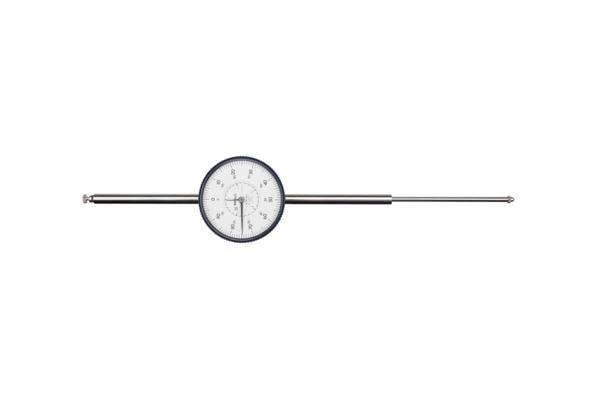

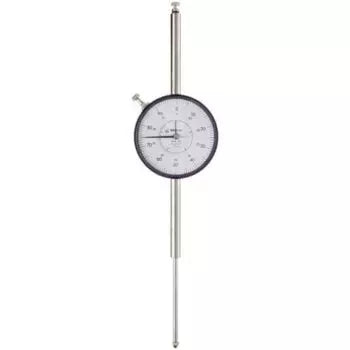

A Mitutoyo shockproof, multi-revolution dial indicator suited to general measurement applications in a vertical orientation. The jewelled movement provides lowest friction and stiction for smooth and precise operation and the bi-directional scale aids measurement in both directions.

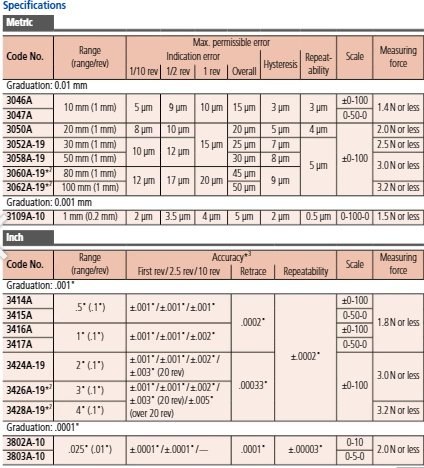

Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Delivered:
With certificate of inspection, bezel clamp, limit hands
Range:
4 "
Range
per rev.:
0,1"
Graduation:
0,001"
Accuracy:
±0,002"
H MPE (Hysteresis):
0,00033"
R MPE (Repeatability):
±0,0002"
Error of indication one revolution:
±0,002"
MPE first one revolution:
±0,001"
MPE first 2 1/2 revolutions:
±0,001"
MPE > 2 1/2-10 revolutions:
±0,002"
Type:
ANSI/AGD Standard
Mass:
366 g
Stem:
9.52 mm / 0.375"
Contact point:
Carbide tipped, thread: 4-48UNF
Continuous dial:
Yes
Coaxial revolution counter:
Yes
Shockproof:
Yes
Variants

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 1 Dial Gauge, Flat Back, ANSI/AGD Type 3428AB-19, Face Diameter 3.07", Grad .001" x 4" Travel (Copy) Click to open the PDF document
Product Document 2 Dial Gauge, Flat Back, ANSI/AGD Type 3428AB-19, Face Diameter 3.07", Grad .001" x 4" Travel (Copy) Click to open the PDF document
