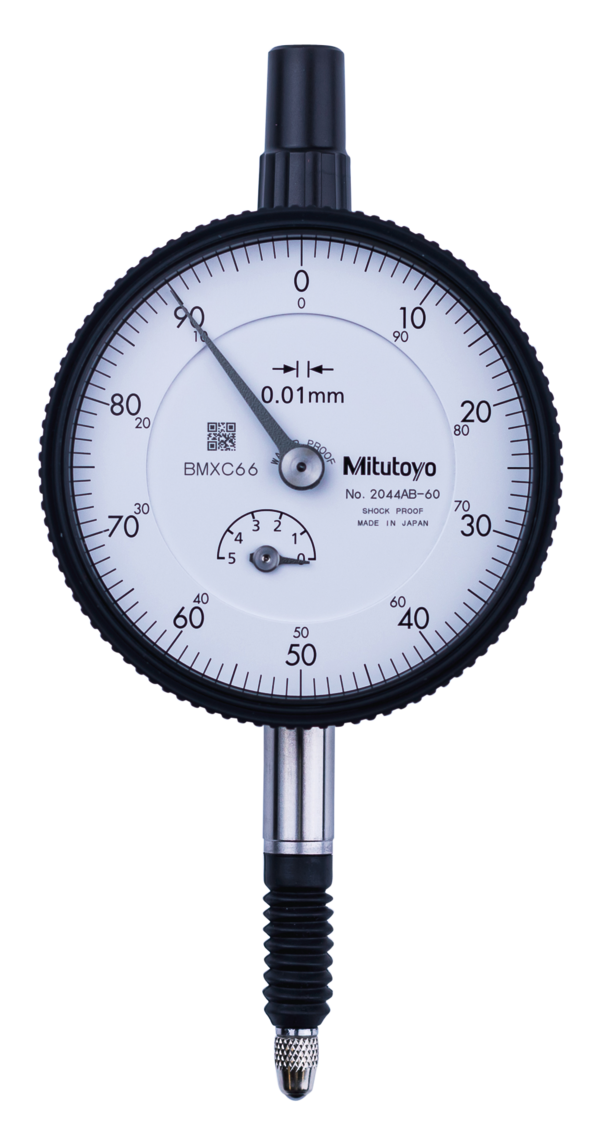

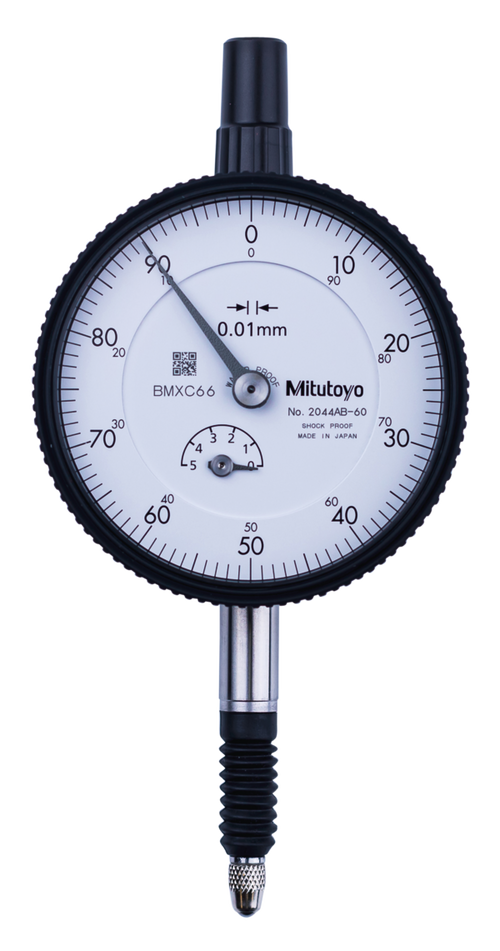

Dial Gauge, Flat Back, ISO Type IP64, 5mm, 0,01mm 2044AB-60

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ISO Type IP64, 5mm, 0,01mm 2044AB-60

Name: Dial Gauge, Flat Back, ISO Type IP64, 5mm, 0,01mm 2044AB-60
Brand: Mitutoyo
SKU: 2044AB-60
Price: 75.6 GBP
Availability: InStock

MitutoyoSKU: 2044AB-60

All prices exclude VAT, which will be added at checkout.

Price:

£75.60 £108.00

Quantity:

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2044AB-60
Measuring Range	5mm
Graduation	.01mm
Accuracy	.012mm
Measuring Force	≤1.4N
Type	Flat Back
Repeatability	.003mm
Dial Reading	+/-0-100
Dial Face Size Ø	57mm
Hysteresis	.003mm
Stem Diameter	8mm
Back	Flat back
Calibration Code	CAL14 B1

Digital/Analog:	Analog
Inch-Metric:	Metric
Type:	EN ISO Standard
Delivered:	With certificate of inspection
Range:	5 mm
Range per rev.:	1 mm
Dial reading:	±0-100
Graduation:	0.01 mm
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	9 µm
MPE any 1 revolution:	10 µm
MPE measuring range:	12 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Measuring force:	0,4-2,5 N
Mass:	138 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
