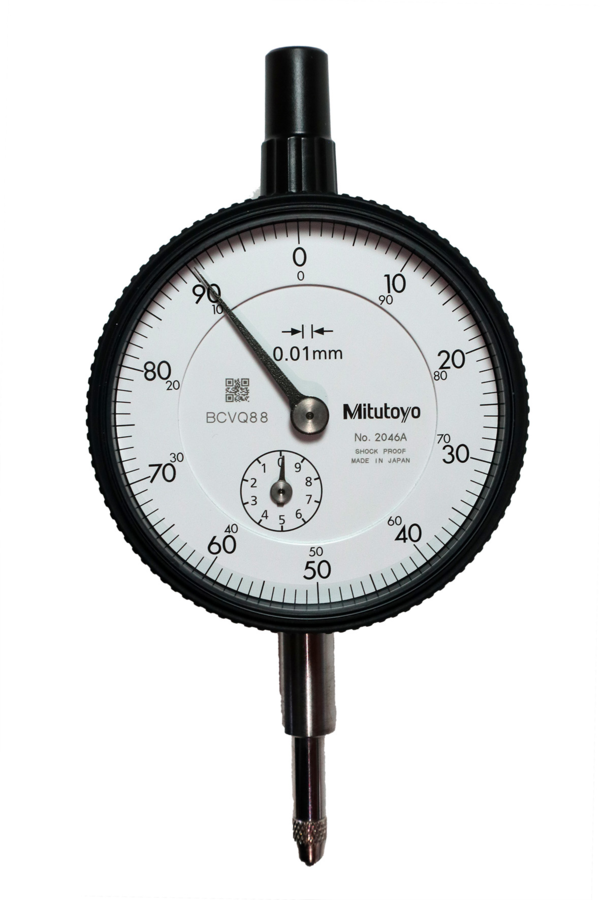

Dial Gauge, Flat Back, ISO Type Shockproof, 10mm, 0,01mm 2046AB-09

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ISO Type Shockproof, 10mm, 0,01mm 2046AB-09

Name: Dial Gauge, Flat Back, ISO Type Shockproof, 10mm, 0,01mm 2046AB-09
Brand: Mitutoyo
SKU: 2046AB-09
Price: 50.0 GBP
Availability: InStock

MitutoyoSKU: 2046AB-09

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£50.00 £68.10

Quantity:

All prices exclude VAT, which will be added at checkout.

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.

Product Information
Part Number	2046AB-09
Measuring Ranges	10mm
Graduation	.01mm
Accuracy	.013mm
Measuring Force	≤1.4N
Type	Flat Back
Repeatability	.003mm
Dial Reading	+/-0-100
Dial Face Size Ø	57mm
Hysteresis	.003mm
Stem Diameter	8mm
Back	Flat back
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Type:	EN ISO Standard
Delivered:	With certificate of inspection
Range:	10 mm
Range per rev.:	1 mm
Dial reading:	±0-100
Graduation:	0.01 mm
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	9 µm
MPE any 1 revolution:	10 µm
MPE measuring range:	15 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Measuring force:	0,4-1,4 N
Mass:	146 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
Shockproof:	Yes
