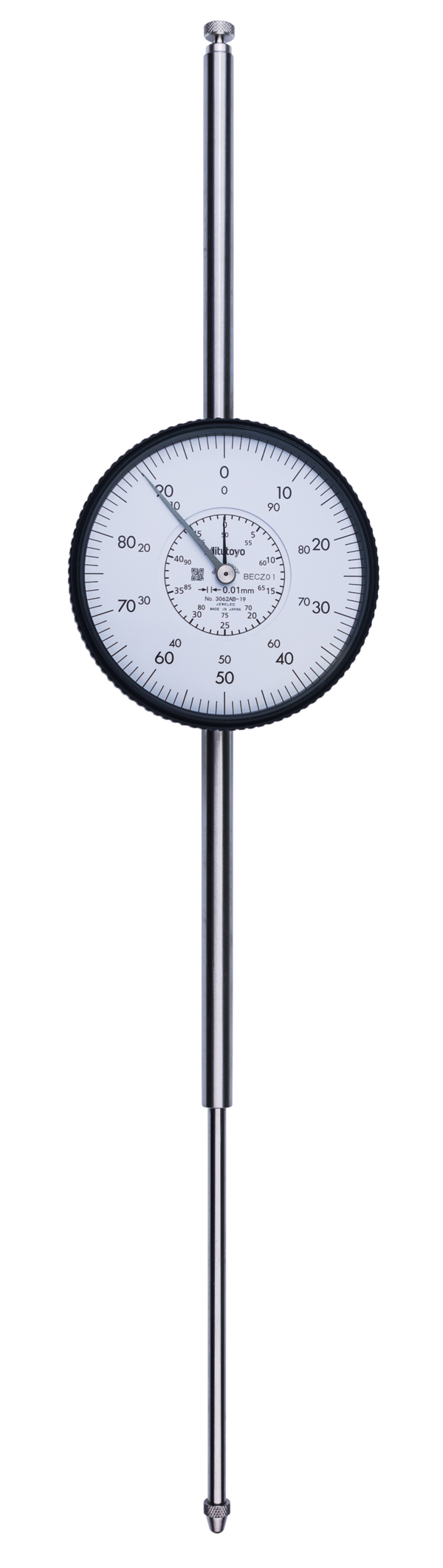

Dial Gauge, Flat Back, ISO Type Jewelled Bearing, Shockproof, 100mm, 0,01mm 3062AB-19

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ISO Type Jewelled Bearing, Shockproof, 100mm, 0,01mm 3062AB-19

Name: Dial Gauge, Flat Back, ISO Type Jewelled Bearing, Shockproof, 100mm, 0,01mm 3062AB-19
Brand: Mitutoyo
SKU: 3062AB-19
Price: 295.4 GBP
Availability: InStock

MitutoyoSKU: 3062AB-19

All prices exclude VAT, which will be added at checkout.

Price:

£295.40 £422.00

Quantity:

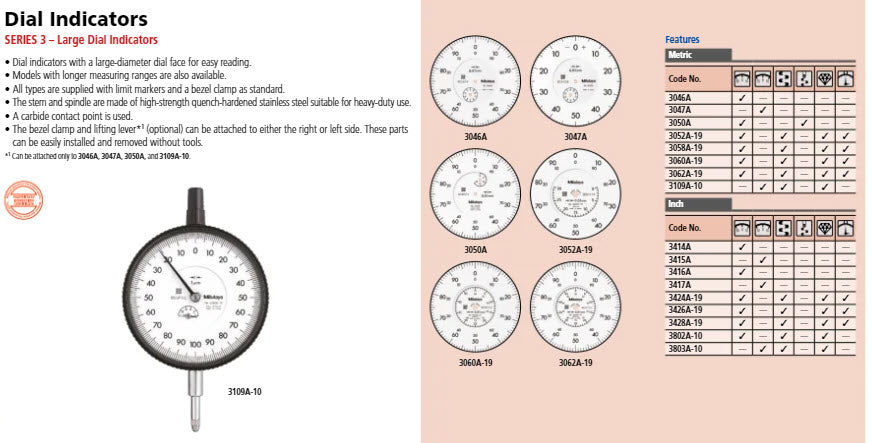

This is a standard dial indicator. It offers you the following benefits:

Large-diameter dial face ø = 78 mm for easy reading
0,01 / 0,001 mm graduation

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

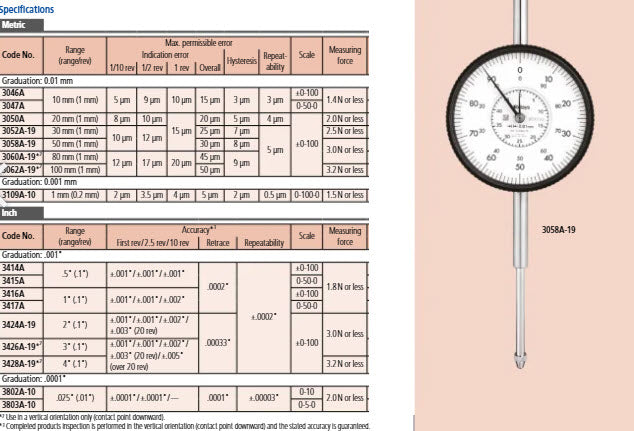

Product Information
Part Number	3062AB-19
Measuring Range	100mm
Graduation	.01mm
Accuracy	.05mm
Unit of Measurement	Metric
Measuring Force	≤3.2N
Type	Flat Back
Repeatability	.005mm
Dial Reading	+/-0-100
Dial Face Size Ø	78mm
Hysteresis	.009mm
Stem Diameter	8mm
Calibration Code	CAL14 B6

Digital/Analog:	Analog
Inch-Metric:	Metric
Type:	EN ISO Standard
Delivered:	With certificate of inspection
Range:	100 mm
Range per rev.:	1 mm
Dial reading:	±0-100
Graduation:	0.01 mm
MPE any 1/10 revolution:	12 µm
MPE any 1/2 revolution:	17 µm
MPE any 1 revolution:	20 µm
MPE measuring range:	50 µm
H MPE (Hysteresis):	9 µm
R MPE (Repeatability):	3 µm
Measuring force:	0,4-3,5 N
Mass:	317 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
Coaxial revolution counter:	Yes
Shockproof:	Yes
