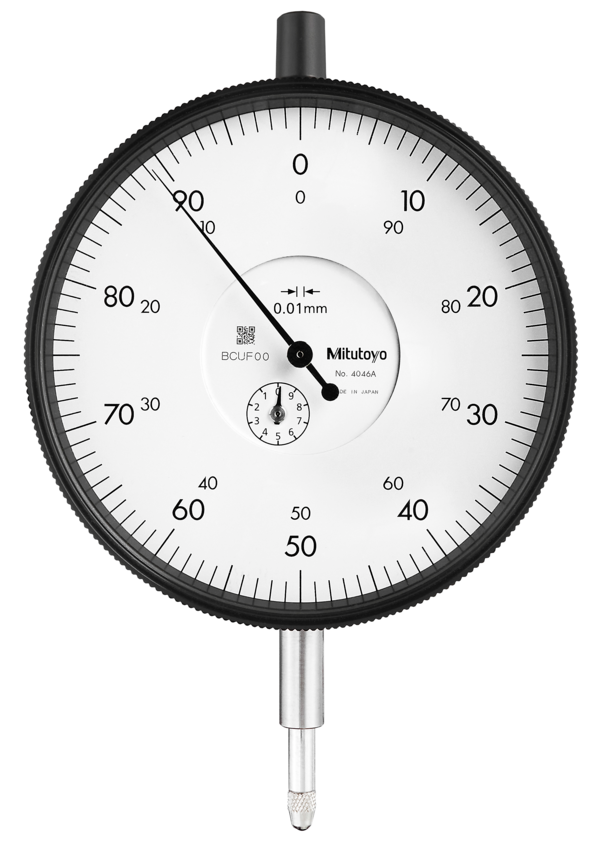

Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 4046AB
Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 4046AB
Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 4046AB
Roll over image to zoom in Click on image to zoom
Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 4046ABDial Gauge, Flat Back, ISO Type 10mm, 0,01mm 4046ABDial Gauge, Flat Back, ISO Type 10mm, 0,01mm 4046AB

Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 4046AB

MitutoyoSKU: 4046AB
List price: £212.00 Offer price: £155.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

This is a standard dial indicator. It offers you the following benefits:

  • Large-diameter dial face ø = 92 mm for easy reading
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Delivered:
With certificate of inspection
Range:
10 mm
Range
per rev.:
1 mm
Dial reading:
±0-100
Graduation:
0.01 mm
MPE any 1/10
revolution:
5 µm
MPE any 1/2
revolution:
9 µm
MPE any 1
revolution:
10 µm
MPE measuring range:
15 µm
H MPE
(Hysteresis):
3 µm
R MPE
(Repeatability):
3 µm
Type:
EN ISO Standard
Measuring force:
0,4-1,4 N
Mass:
330 g
Continuous dial:
Yes

No technical information is currently available.

No application information is currently available.
