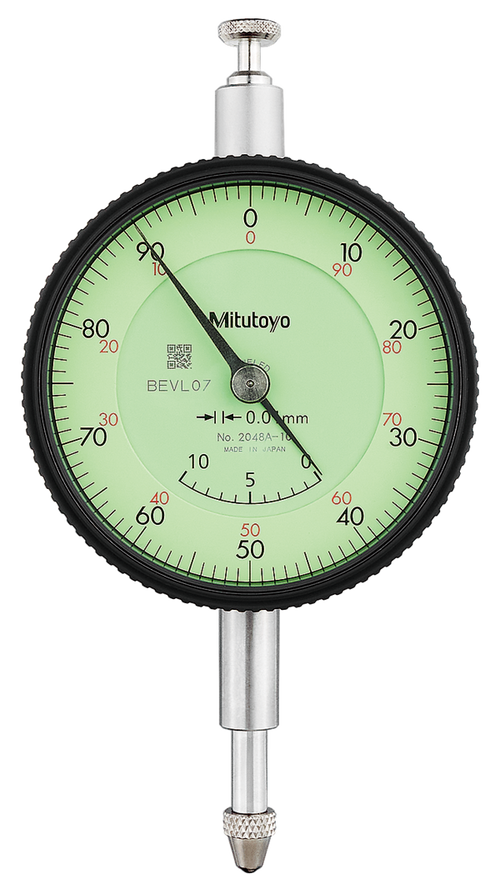

This special dial indicators offer you the following benefits:
- In an adjustable pointer type the pointer can be adjusted independently of the position of the spindle by rotating the top knob.
- In a peak hold type a mechanism holds the pointer and the spindle at the position of maximum depression and hence displays the maximum value.
- Coaxial revolution counter
- Continous dial
- Range: 10mm
- Range per rev: 1mm
- Resolution: 0.01mm
- Accuracy: ± 0.015mm
- Retrace: 0.003mm
- Accuracy 1/10 rev: 0.005mm
- Accuracy 1 rev: 0.010mm
- Repeatability: 0.003mm
- Scale: 0-100
- Measuring Force: 1.4N or less
- Coaxial revolution counter
- Jeweled Bearing
- Continous Dial
- Carbide tipped, thread: M 2.5 x 0.45 mm
- Stem: 8mm
- Code 2048A-10
- Brand: Mitutoyo
No technical information is currently available.
No application information is currently available.
