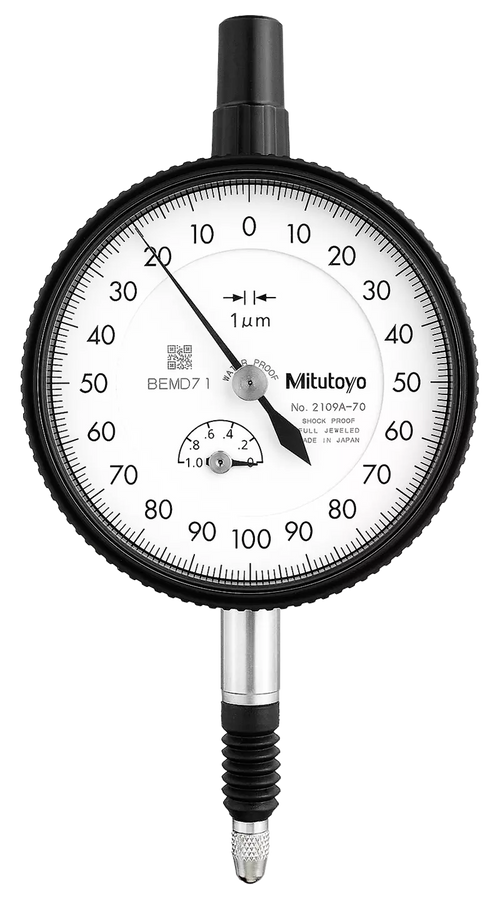

Dial Gauge,Flat Back, ISO Type IP64, Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109AB-70

Roll over image to zoom in Click on image to zoom

Dial Gauge,Flat Back, ISO Type IP64, Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109AB-70

Name: Dial Gauge,Flat Back, ISO Type IP64, Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109AB-70
Brand: Mitutoyo
SKU: 2109AB-70
Price: 88.56 GBP
Availability: InStock

MitutoyoSKU: 2109AB-70

All prices exclude VAT, which will be added at checkout.

Price:

£88.56 £123.00

Quantity:

Standard Type, 1 mm Range, 0,001 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2109AB-70
Measuring Ranges	1mm
Graduation	.001mm
Accuracy	.005mm
Unit of Measurement	Metric
Measuring Force	≤1.5N
Type	Flat Back
Repeatability	.001mm
Dial Reading	0-100-0
Dial Face Size Ø	57mm
Hysteresis	.002mm
Stem	8mm
Stem Diameter	8mm
Back	Flat back
Range Per Rev	0.2mm
Scale	0-100-0
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	1 mm
Range per rev.:	0.2 mm
Dial reading:	0-100-0
Graduation:	0.001 mm
Measuring force:	0,4-2
MPE any 1/10 revolution:	2.5 µm
MPE any 1/2 revolution:	4 µm
MPE any 1 revolution:	4.5 µm
MPE measuring range:	5 µm
H MPE (Hysteresis):	2 µm
R MPE (Repeatability):	1 µm
Mass:	149 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Balanced dial:	Yes
Shockproof:	Yes
