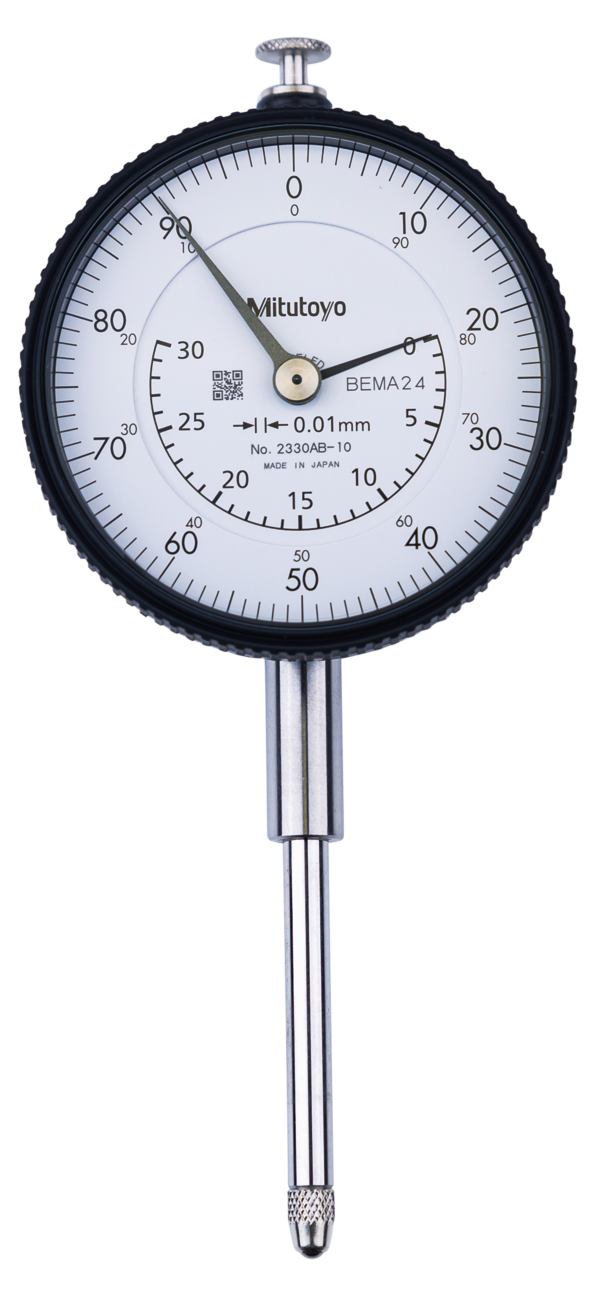

Dial Gauge, Flat Back, ISO Type Jewelled Bearing, 30mm, 0,01mm 2330AB-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ISO Type Jewelled Bearing, 30mm, 0,01mm 2330AB-10

Name: Dial Gauge, Flat Back, ISO Type Jewelled Bearing, 30mm, 0,01mm 2330AB-10
Brand: Mitutoyo
SKU: 2330AB-10
Price: 88.9 GBP
Availability: InStock

MitutoyoSKU: 2330AB-10

All prices exclude VAT, which will be added at checkout.

Price:

£88.90 £127.00

Quantity:

Standard Type, 30 mm Range, 0,01 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2330AB-10
Measuring Ranges	30mm
Graduation	.01mm
Accuracy	.025mm
Unit of Measurement	Metric
Measuring Force	≤2.5N
Type	Flat Back
Repeatability	.005mm
Dial Reading	+/-0-100
Dial Face Size Ø	57mm
Hysteresis	.007mm
Stem	8mm
Stem Diameter	8mm
Back	Flat back
Range Per Rev	1mm
Scale	±0-100
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Type:	EN ISO Standard
Delivered:	With certificate of inspection
Range:	30 mm
Range per rev.:	1 mm
Dial reading:	±0-100
Graduation:	0.01 mm
MPE any 1/10 revolution:	7 µm
MPE any 1/2 revolution:	11 µm
MPE any 1 revolution:	12 µm
MPE measuring range:	25 µm
H MPE (Hysteresis):	5 µm
R MPE (Repeatability):	3 µm
Measuring force:	0,4-2,5 N
Mass:	153 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
Coaxial revolution counter:	Yes
Cushioned end point:	Yes
