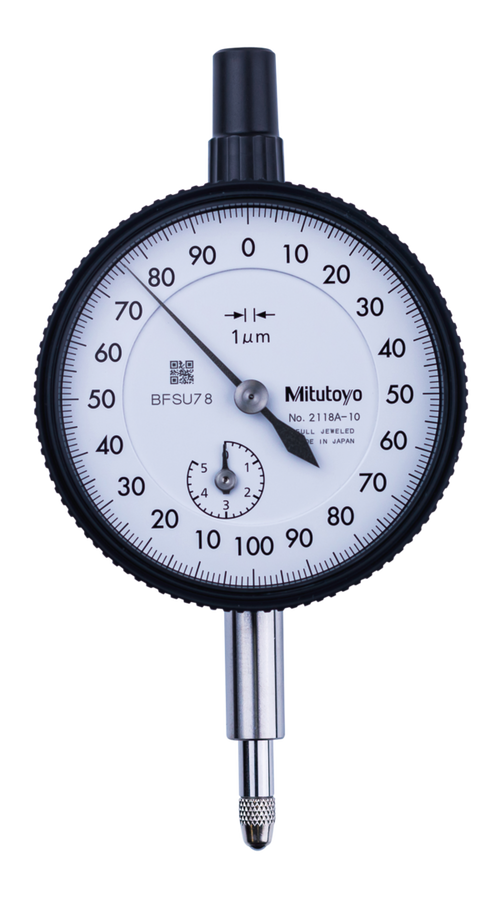

Dial Gauge,Flat Back, ISO Type Jewelled Bearing, 5mm, 0,001mm 2118AB-10

Roll over image to zoom in Click on image to zoom

Dial Gauge,Flat Back, ISO Type Jewelled Bearing, 5mm, 0,001mm 2118AB-10

Name: Dial Gauge,Flat Back, ISO Type Jewelled Bearing, 5mm, 0,001mm 2118AB-10
Brand: Mitutoyo
SKU: 2118AB-10
Price: 96.0 GBP
Availability: InStock

MitutoyoSKU: 2118AB-10

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£96.00 £132.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Standard Type, 2 and 5 mm Range, 0,001 / 0,005 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Product Information
Part Number	2118AB-10
Measuring Ranges	5mm
Graduation	.001mm
Accuracy	.010mm
Unit of Measurement	Metric
Measuring Force	≤1.5N
Type	Flat Back
Repeatability	.001mm
Dial Reading	0-100-0
Dial Face Size Ø	57mm
Hysteresis	.003mm
Stem	8mm
Stem Diameter	8mm
Back	Flat back
Range Per Rev	0.2mm
Scale	0-100-0
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	5 mm
Range per rev.:	0.2 mm
Dial reading:	0-100-100
Graduation:	0.001 mm
Measuring force:	0,4-1,5
MPE any 1/10 revolution:	4 µm
MPE any 1/2 revolution:	6 µm
MPE any 1 revolution:	6.5 µm
MPE measuring range:	10 µm
H MPE (Hysteresis):	2.5 µm
R MPE (Repeatability):	2 µm
Mass:	146 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
