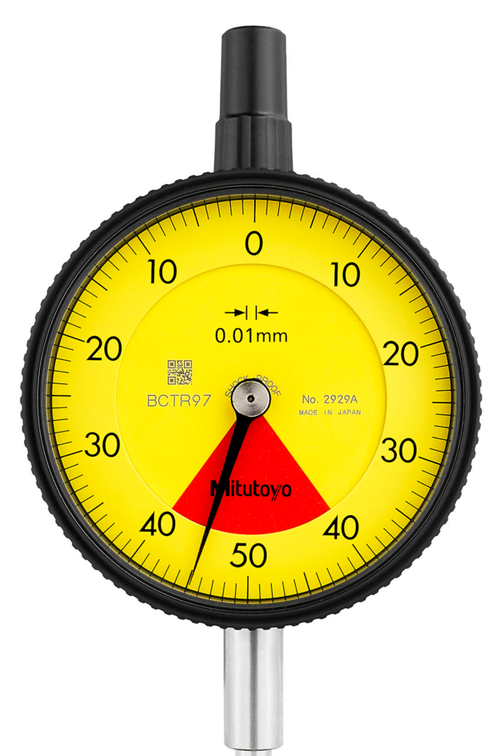

Dial Gauge, Flat Back, ISO Type One Revolution, Shockproof, 0,8mm, 0,01mm 2929AB

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ISO Type One Revolution, Shockproof, 0,8mm, 0,01mm 2929AB

Name: Dial Gauge, Flat Back, ISO Type One Revolution, Shockproof, 0,8mm, 0,01mm 2929AB
Brand: Mitutoyo
SKU: 2929AB
Price: 72.0 GBP
Availability: InStock

MitutoyoSKU: 2929AB

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£72.00 £98.20

Quantity:

All prices exclude VAT, which will be added at checkout.

This is a one revolution dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Product Information
Part Number	2929AB
Measuring Ranges	0.8mm
Graduation	.01mm
Accuracy	.008mm
Unit of Measurement	Metric
Measuring Force	≤1.4N
Type	Flat Back
Repeatability	.003mm
Dial Reading	40-0-40
Dial Face Size Ø	57mm
Hysteresis	.003mm
Stem	8mm
Stem Diameter	8mm
Back	Flat back
Range Per Rev	1mm
Scale	40-0-40
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	0.8 mm
Plunger Stroke:	5 mm
Range per rev.:	1 mm
Dial reading:	40-0-40
Graduation:	0.01 mm
Measuring force:	0.4-1.4 N
MPE any 1/10 revolution:	5 µm
MPE measuring range:	7 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Mass:	145 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
One revolution:	Yes
Shockproof:	Yes
