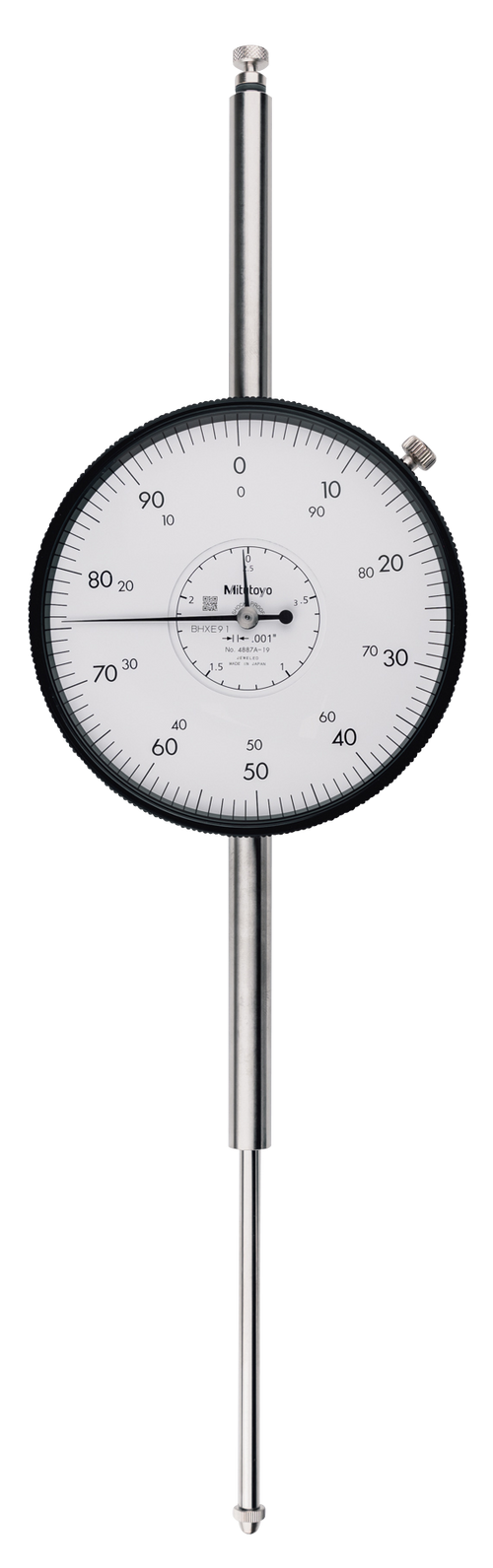

Dial Gauge, Flat Back, ANSI/AGD Type Jewelled Bearing, Shockproof, 3", 0,001" 4887AB-19 Face 3.62"

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ANSI/AGD Type Jewelled Bearing, Shockproof, 3", 0,001" 4887AB-19 Face 3.62"

Name: Dial Gauge, Flat Back, ANSI/AGD Type Jewelled Bearing, Shockproof, 3", 0,001" 4887AB-19 Face 3.62"
Brand: Mitutoyo
SKU: 4887AB-19
Price: 320.6 GBP
Availability: InStock

MitutoyoSKU: 4887AB-19

All prices exclude VAT, which will be added at checkout.

Price:

£320.60 £458.00

Quantity:

This is a standard dial indicator. It offers you the following benefits:

Large-diameter dial face ø = 92 mm for easy reading

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	4887AB-19
Measuring Range	3"
Graduation	.001"
Accuracy	.005"
Unit of Measurement	Inch
Measuring Force	≤3N
Type	Lug Back
Repeatability	±.0002"
Dial Reading	+/-0-100
Dial Face Size Ø	92mm
Hysteresis	.00033"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Flat back
Range Per Rev	.1"
Scale	±0-100
Calibration Code	CAL14 B5

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	3 "
Range per rev.:	0,1"
Graduation:	0,001"
Accuracy:	±0,002"
H MPE (Hysteresis):	0,00033"
R MPE (Repeatability):	±0,0002"
Error of indication one revolution:	±0,002"
MPE first one revolution:	±0,001"
MPE first 2 1/2 revolutions:	±0,001"
MPE > 2 1/2-10 revolutions:	±0,002"
Type:	ANSI/AGD Standard
Measuring force:	0,4-3 N
Mass:	407 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Continuous dial:	Yes
Coaxial revolution counter:	Yes
Shockproof:	Yes
