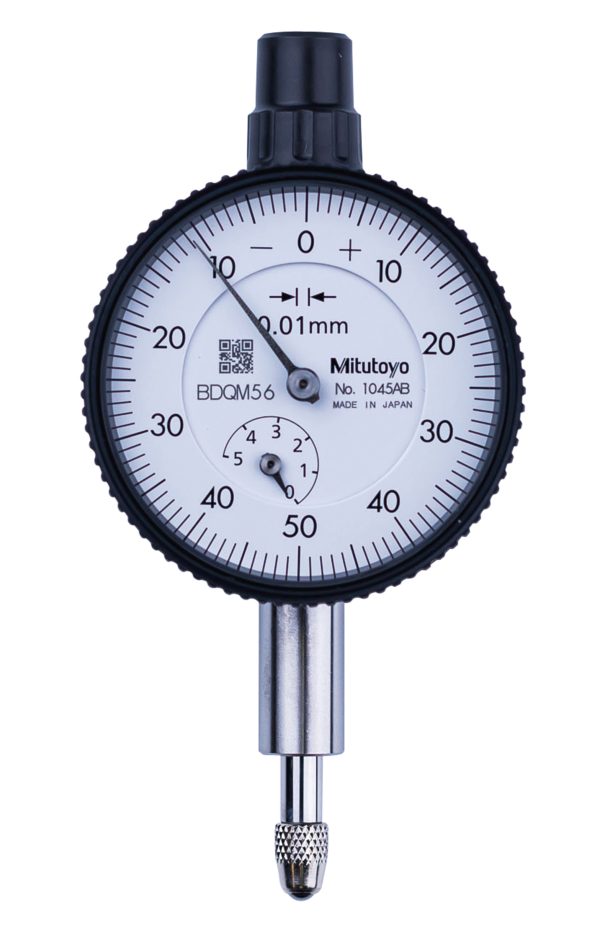

Dial Gauge, ISO Type 5mm, 0,01mm 1045SB Flat back 40mm diameter

Roll over image to zoom in Click on image to zoom

Dial Gauge, ISO Type 5mm, 0,01mm 1045SB Flat back 40mm diameter

Name: Dial Gauge, ISO Type 5mm, 0,01mm 1045SB Flat back 40mm diameter
Brand: Mitutoyo
SKU: 1045SB
Price: 46.0 GBP
Availability: InStock

MitutoyoSKU: 1045SB

All prices exclude VAT, which will be added at checkout.

Price:

£46.00 £67.40

Quantity:

Compact Type 5 mm Range Small Diameter - Metric

This is a compact, dial indicator with a bezel ∅ 40 mm. It offers you the following benefits:

It is ideal for use in applications where space is limited.

Customer Support

Contact our customer support team via email or call our hotline number

Phone - 02476 644661

Secure payments

We offer multiple secure payment options

Product Information
Part Number	1045SB
Measuring Ranges	5mm
Resolution	0.01mm
Graduation	.01mm
Accuracy	.013mm
Unit of Measurement	Metric
Measuring Force	≤1.4N
Type	Flat Back
Repeatability	.003mm
Dial Face Size Ø	40mm
Hysteresis	.004mm
Stem	8mm
Back	Flat back
Range Per Rev	1mm

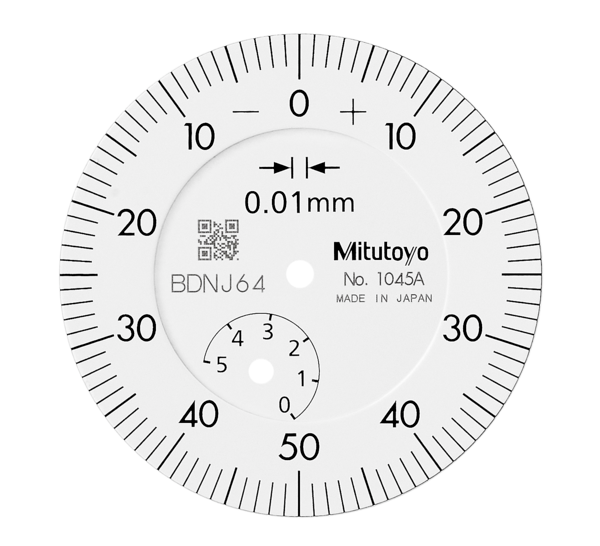

Scale	0-50-0
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Delivered:	With certificate of inspection
Range:	5 mm
Range per rev.:	1 mm
Dial reading:	0-50-0
Graduation:	0.01 mm
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	9 µm
MPE any 1 revolution:	10 µm
MPE measuring range:	12 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Measuring force:	0,4-1,4 N
Mass:	70 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Balanced dial:	Yes
Type:	EN ISO Standard
