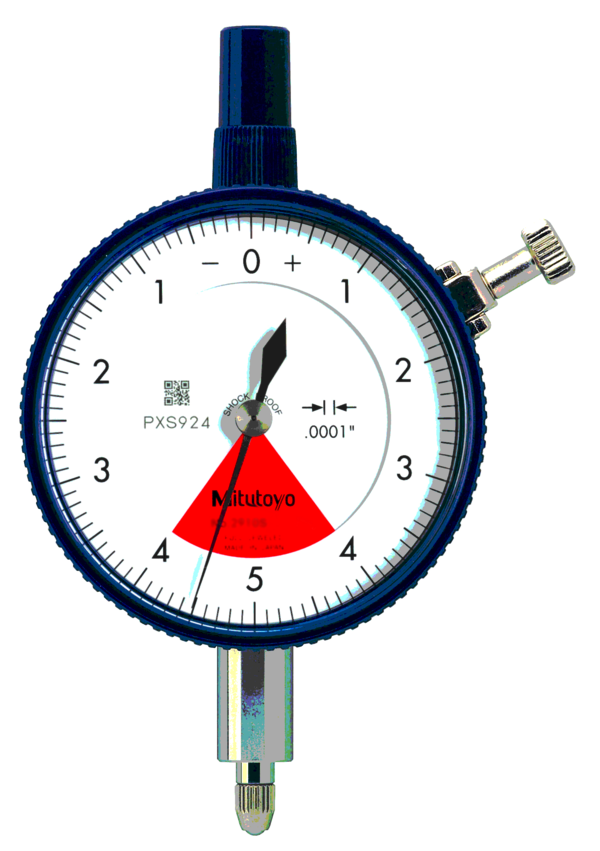

Dial Gauge, Lug Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910A-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910A-10

Name: Dial Gauge, Lug Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910A-10
Brand: Mitutoyo
SKU: 2910A-10
Price: 90.3 GBP
Availability: InStock

MitutoyoSKU: 2910A-10

All prices exclude VAT, which will be added at checkout.

Price:

£90.30 £129.00

Quantity:

Graduation 0,001 mm

This is a one revolution dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
It eliminates the possibility of reading errors due to miscounting multiple revolutions.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2910A-10
Measuring Range	0.008"
Graduation	.0001"
Accuracy	.0001"
Unit of Measurement	Inch
Measuring Force	≤1.8N
Type	Lug Back
Repeatability	±.00003"
Dial Reading	4-0-4
Dial Face Size Ø	57mm
Hysteresis	.0001"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Centre Lug Back
Range Per Rev	.01"
Scale	4-0-4
Calibration Code	CAL14 B1

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	0.08 mm
Plunger Stroke:	4 mm
Range per rev.:	0.1 mm
Dial reading:	40-0-40
Graduation:	0.001 mm
Measuring force:	0.4-2 N
MPE any 1/10 revolution:	2 µm
MPE measuring range:	3 µm
H MPE (Hysteresis):	2 µm
R MPE (Repeatability):	1 µm
Mass:	150 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
One revolution:	Yes
Shockproof:	Yes
