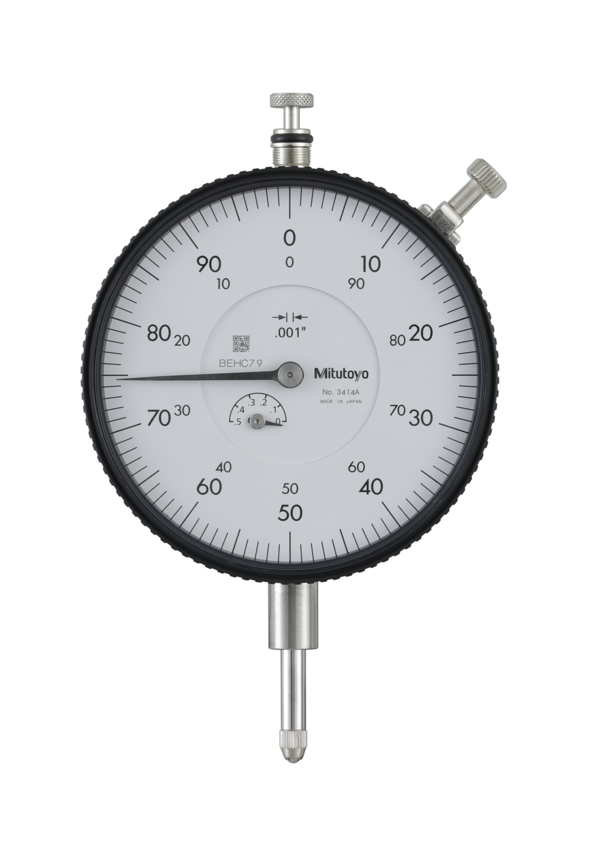

Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414A Face Diameter 3.07"

MitutoyoSKU: 3414A

List price: Regular price£163.00 Offer price: Sale price£114.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

This is a standard, inch dial indicator. It offers you the following benefits:
  • Large-diameter dial face ø = 78 mm for easy reading
  • Supplied with limit markers and a bezel clamp as standard
  • 0,001" / 0,0001" graduation
Digital/Analog:
Analog
Inch-Metric:
Inch
Delivered:
With certificate of inspection, bezel clamp
Range:
0,5 "
Range
per rev.:
0,1"
Graduation:
0.001"
Accuracy:
±0.001"
H MPE (Hysteresis):
0,0002"
R MPE (Repeatability):
±0,0002"
Error of indication one revolution:
±0.001"
MPE first one revolution:
±0,001"
MPE first 2 1/2 revolutions:
±0,001"
MPE > 2 1/2-10 revolutions:
±0,001"
Type:
ANSI/AGD Standard
Measuring force:
0,4-1,8 N
Mass:
259 g
Stem:
9.52 mm / 0.375"
Contact point:
Carbide tipped, thread: 4-48UNF
Continuous dial:
Yes

No technical information is currently available.

No application information is currently available.
