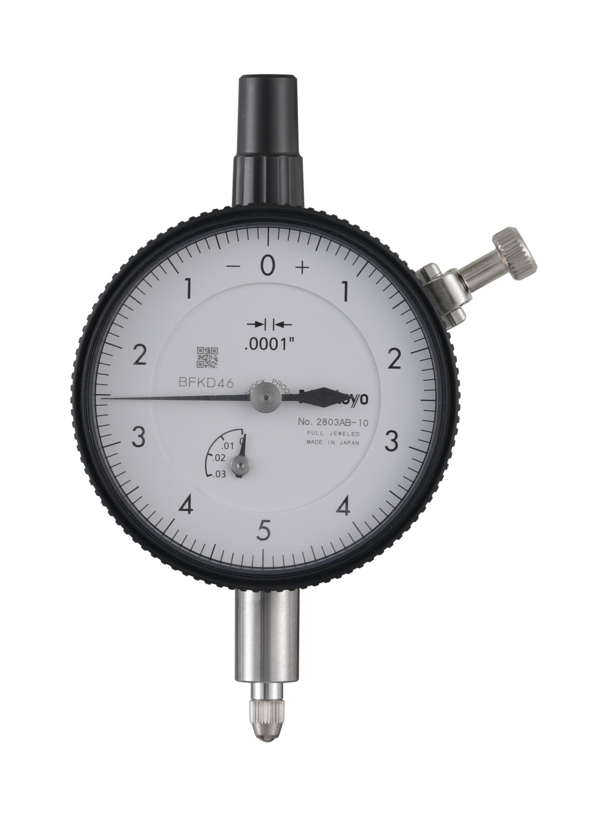

Dial Gauge, Lug Back, ANSI/AGD Type Jewelled Bearing, Shockproof, 0,025", 0,0001" 2803S-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ANSI/AGD Type Jewelled Bearing, Shockproof, 0,025", 0,0001" 2803S-10

Name: Dial Gauge, Lug Back, ANSI/AGD Type Jewelled Bearing, Shockproof, 0,025", 0,0001" 2803S-10
Brand: Mitutoyo
SKU: 2803S-10
Price: 101.0 GBP
Availability: InStock

MitutoyoSKU: 2803S-10

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£101.00 £139.00

Quantity:

All prices exclude VAT, which will be added at checkout.

This is a standard, inch dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Product Information
Part Number	2803S-10
Measuring Ranges	0.025"
Graduation	.0001"
Accuracy	.0001"
Unit of Measurement	Inch
Measuring Force	≤2N
Repeatability	±.00003"
Dial Reading	0-5-0
Dial Face Size Ø	57mm
Hysteresis	.0001"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Centre Lug Back
Range Per Rev	.01"
Scale	0-5-0
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,025 "
Range per rev.:	0,01"
Graduation:	0,0001"
Accuracy:	±0,0001"
H MPE (Hysteresis):	0,0001"
R MPE (Repeatability):	±0,00003"
Error of indication one revolution:	±0,0001"
MPE first one revolution:	±0,0001"
MPE first 2 1/2 revolutions:	±0,0001"
Type:	ANSI/AGD Standard
Measuring force:	0,4-2 N
Mass:	139 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Balanced dial:	Yes
Continuous dial:	Yes
Shockproof:	Yes
