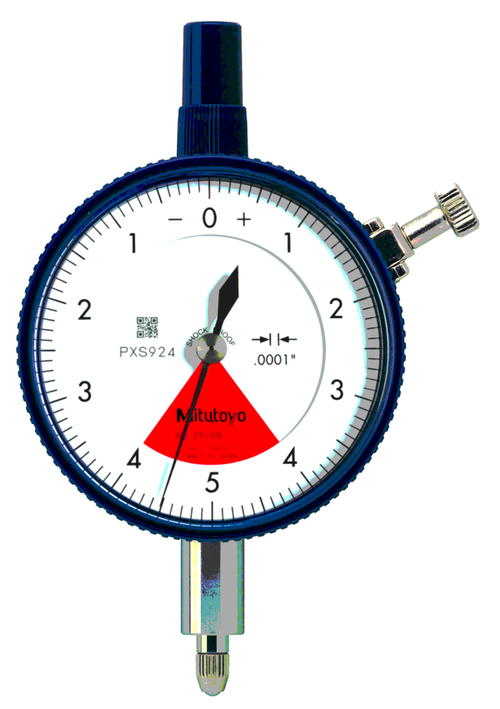

Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10
Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10
Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10
Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10
Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10
Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10
Roll over image to zoom in Click on image to zoom
Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10

Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10

MitutoyoSKU: 2910AB-10
List price: £140.00 Offer price: £102.00 Excluding VAT
Graduation 0,001 mm

This is a one revolution dial indicator. It offers you the following benefits:
  • Bezel clamp and lifting lever (optional) can be attached to either right or left side.
  • No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
  • It eliminates the possibility of reading errors due to miscounting multiple revolutions.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Functions:
ISO type
Delivered:
With certificate of inspection
Range:
0.08 mm
Plunger Stroke:
4 mm
Range
per rev.:
0.1 mm
Dial reading:
40-0-40
Graduation:
0.001 mm
Measuring force:
0.4-2 N
MPE any 1/10
revolution:
2 µm
MPE measuring range:
3 µm
H MPE
(Hysteresis):
2 µm
R MPE
(Repeatability):
1 µm
Mass:
150 g
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
One revolution:
Yes
Shockproof:
Yes

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Dial Gauge, Flat Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910AB-10 Click to open the PDF document
