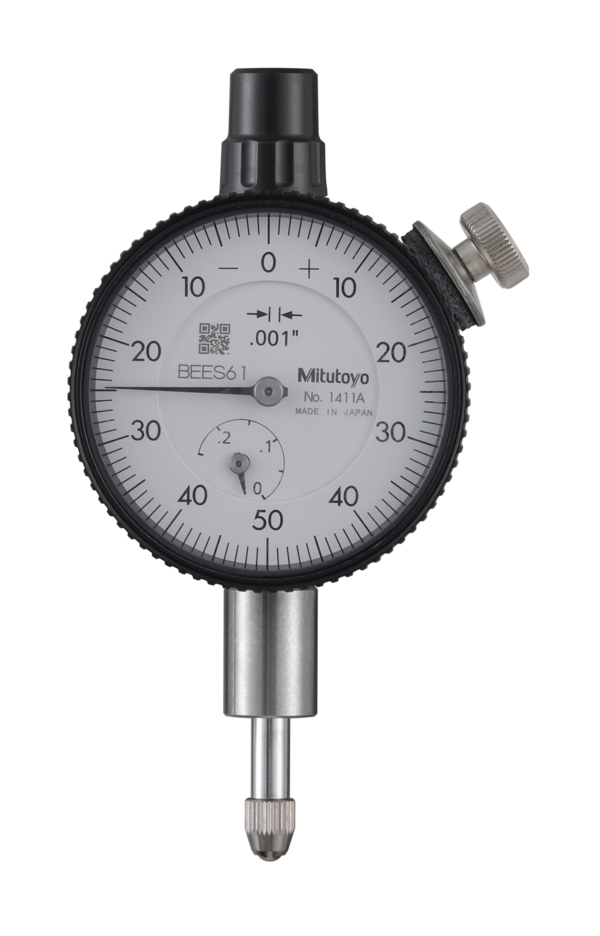

Dial Gauge, Lug Back, ANSI/AGD Type 0,25", 0,001" 1411A
Dial Gauge, Lug Back, ANSI/AGD Type 0,25", 0,001" 1411A
Dial Gauge, Lug Back, ANSI/AGD Type 0,25", 0,001" 1411A
Dial Gauge, Lug Back, ANSI/AGD Type 0,25", 0,001" 1411A
Roll over image to zoom in Click on image to zoom
Dial Gauge, Lug Back, ANSI/AGD Type 0,25", 0,001" 1411ADial Gauge, Lug Back, ANSI/AGD Type 0,25", 0,001" 1411ADial Gauge, Lug Back, ANSI/AGD Type 0,25", 0,001" 1411ADial Gauge, Lug Back, ANSI/AGD Type 0,25", 0,001" 1411A

Dial Gauge, Lug Back, ANSI/AGD Type 0,25", 0,001" 1411A

MitutoyoSKU: 1411A
Price:
£68.00 £93.50



Compact Type, Small Diameter - Inch

This is a compact, inch dial indicator with a bezel Ø 40 mm. It offers you the following benefits:
  • It is ideal for use in applications where space is limited.
  • Green limit markers are a standard accessory.
Features
Digital/Analog:
Analog
Inch-Metric:
Inch
Delivered:
With certificate of inspection, bezel clamp
Range:
0,25 "
Range
per rev.:
0,1"
Graduation:
0,001"
H MPE (Hysteresis):
0,0002"
R MPE (Repeatability):
±0,0002"
MPE first one revolution:
±0,001"
MPE first 2 1/2 revolutions:
±0,001"
Type:
ANSI/AGD Standard
Measuring force:
0,4-1,4 N
Mass:
90 g
Stem:
9.52 mm / 0.375"
Contact point:
Carbide tipped, thread: 4-48UNF
Balanced dial:
Yes
Continuous dial:
Yes
