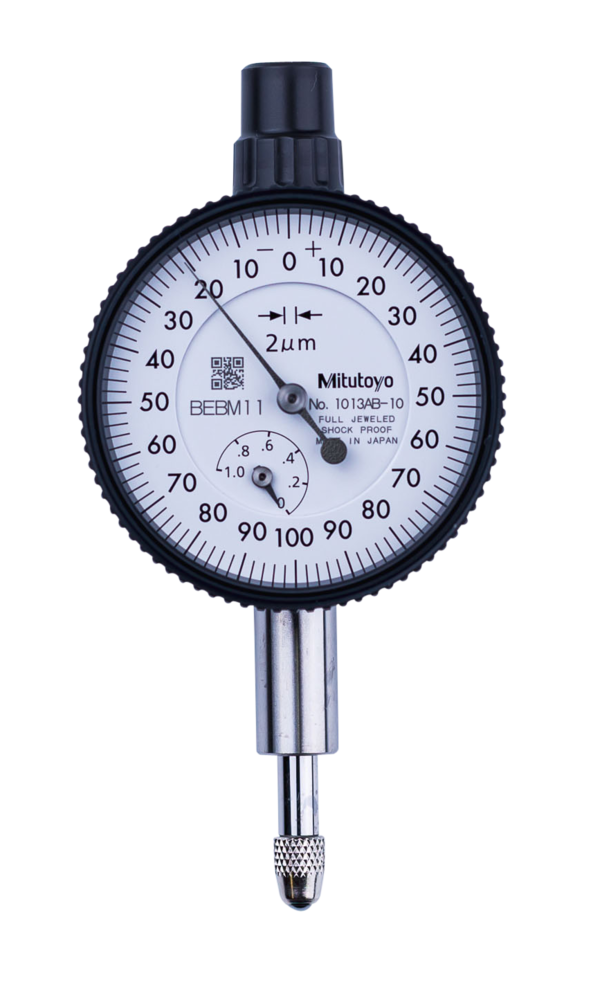

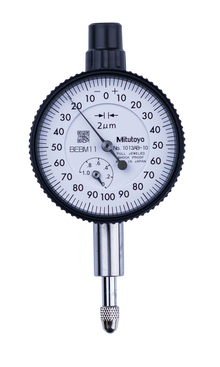

Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 1mm, 0,002mm 1013A-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 1mm, 0,002mm 1013A-10

Name: Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 1mm, 0,002mm 1013A-10
Brand: Mitutoyo
SKU: 1013A-10
Price: 111.0 GBP
Availability: InStock

MitutoyoSKU: 1013A-10

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£111.00 £152.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Compact Type 1 and 3,5 mm Range Small Diameter - Metric

This is a compact, dial indicator with a bezel ∅ 40 mm. It offers you the following benefits:

It is ideal for use in applications where space is limited.

Product Information
Part Number	1013A-10
Measuring Ranges	1mm
Graduation	.002mm
Unit of Measurement	Metric
Measuring Force	≤1.5N
Type	Lug Back
Repeatability	.001mm
Hysteresis	.0025mm
Stem	8mm
Back	Centre Lug Back
Range Per Rev	0.2mm
Scale	0-100-0
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Delivered:	With certificate of inspection
Range:	1 mm
Range per rev.:	0,2 mm
Dial reading:	0-100-0
Graduation:	0.002 mm
MPE any 1/10 revolution:	2.5 µm
MPE any 1/2 revolution:	4 µm
MPE any 1 revolution:	4.5 µm
MPE measuring range:	6 µm
H MPE (Hysteresis):	2 µm
R MPE (Repeatability):	1 µm
Measuring force:	0,4-1,5 N
Mass:	95 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Balanced dial:	Yes
Shockproof:	Yes
Type:	EN ISO Standard
