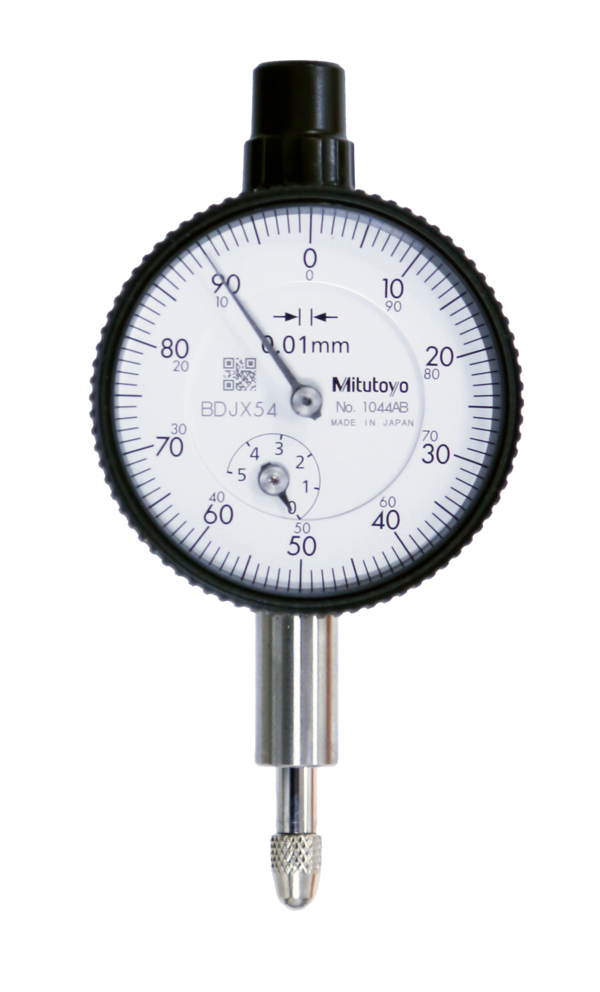

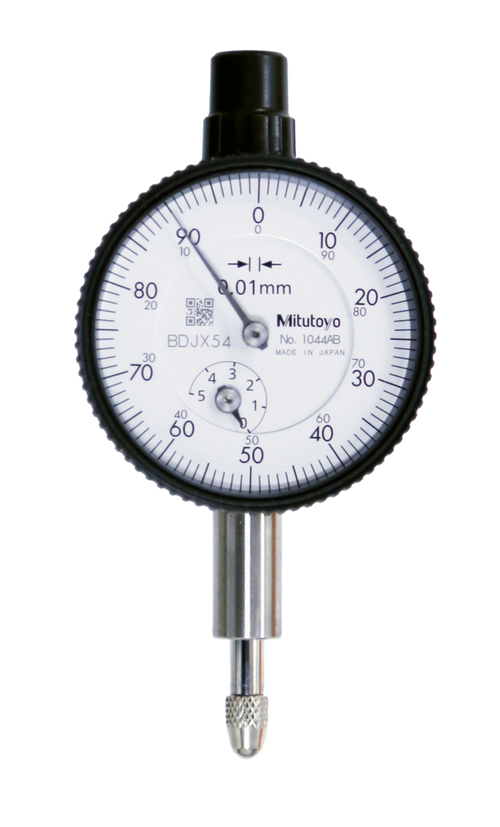

Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,01mm 1044A-15
Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,01mm 1044A-15
Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,01mm 1044A-15
Roll over image to zoom in Click on image to zoom
Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,01mm 1044A-15Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,01mm 1044A-15Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,01mm 1044A-15

Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,01mm 1044A-15

MitutoyoSKU: 1044A-15
List price: £96.20 Offer price: £70.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
Compact Type 5 mm Range Small Diameter - Metric

This is a compact, dial indicator with a bezel ? 40 mm. It offers you the following benefits:
  • It is ideal for use in applications where space is limited.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Delivered:
With certificate of inspection
Range:
5 mm
Range
per rev.:
1 mm
Dial reading:
±0-100
Graduation:
0.01 mm
MPE any 1/10
revolution:
5 µm
MPE any 1/2
revolution:
9 µm
MPE any 1
revolution:
10 µm
MPE measuring range:
12 µm
H MPE
(Hysteresis):
3 µm
R MPE
(Repeatability):
3 µm
Measuring force:
0,1-0,4 N
Mass:
90 g
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:
Yes
Type:
EN ISO Standard

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 1 Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,01mm 1044A-15 Click to open the PDF document
Product Document 2 Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,01mm 1044A-15 Click to open the PDF document
