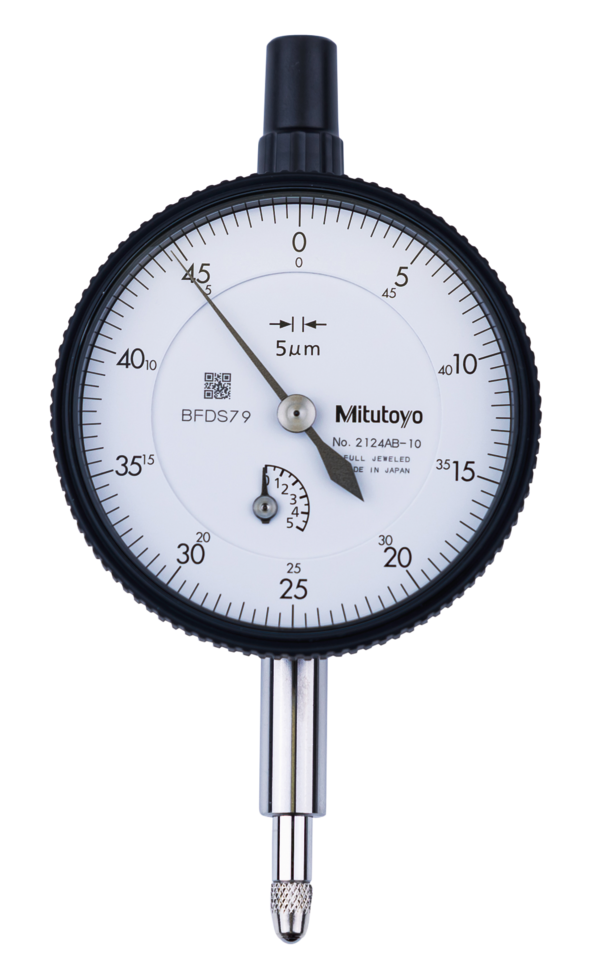

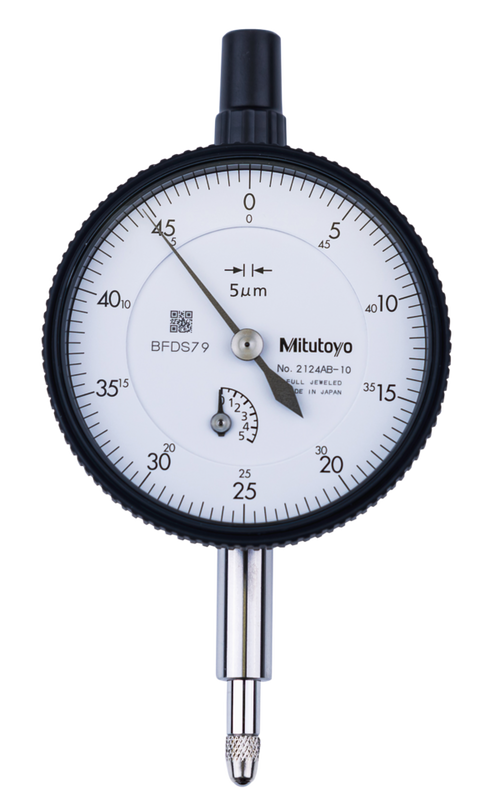

Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,005mm 2124A-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,005mm 2124A-10

Name: Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 5mm, 0,005mm 2124A-10
Brand: Mitutoyo
SKU: 2124A-10
Price: 63.07 GBP
Availability: InStock

MitutoyoSKU: 2124A-10

All prices exclude VAT, which will be added at checkout.

Price:

£63.07 £90.10

Quantity:

Standard Type, 2 and 5 mm Range, 0,001 / 0,005 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2124A-10
Measuring Range	5mm
Graduation	.005mm
Accuracy	.012mm
Unit of Measurement	Metric
Measuring Force	≤1.5N
Type	Lug Back
Repeatability	.003mm
Dial Reading	0-50
Dial Face Size Ø	57mm
Hysteresis	.003mm
Stem	8mm
Stem Diameter	8mm
Back	Centre Lug Back
Range Per Rev	0.5mm
Scale	±0-50
Calibration Code	CAL14 B1

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	5 mm
Range per rev.:	0.5 mm
Dial reading:	±0-50
Graduation:	0.005 mm
Measuring force:	0,4-1,5
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	9 µm
MPE any 1 revolution:	10 µm
MPE measuring range:	11 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	2 µm
Mass:	146 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
