MitutoyoSKU: 3060A-19
List price: £290.00 Offer price: £212.00 Excluding VAT

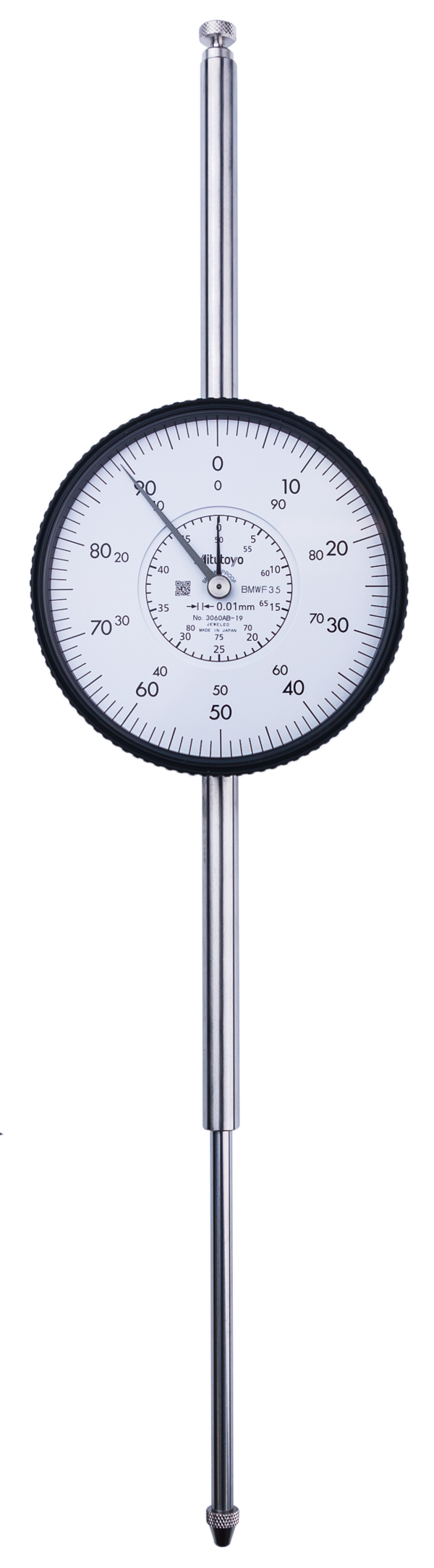

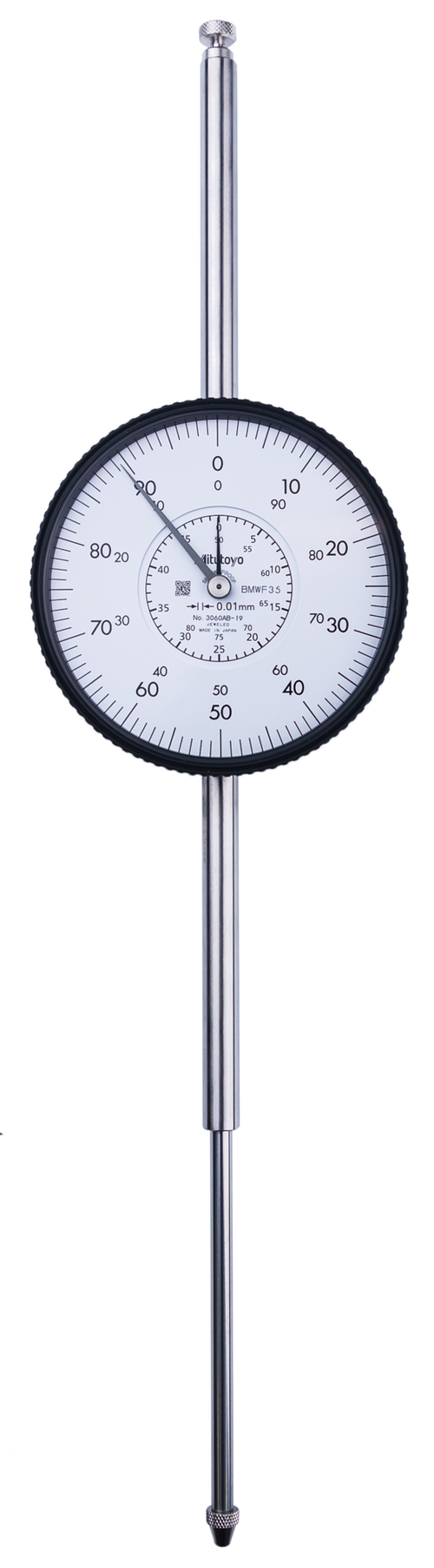

A Mitutoyo shockproof, multi-revolution dial indicator suited to general measurement applications in a vertical orientation. The jewelled movement provides lowest friction and stiction for smooth and precise operation.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Functions:
ISO type
Range:
80 mm
Range
per rev.:
1 mm
Graduation:
0.01 mm
Graduation:
0.01
MPE any 1/10
revolution:
10 µm
MPE any 1/2
revolution:
14 µm
MPE any 1
revolution:
15 µm
MPE measuring range:
45 µm
H MPE
(Hysteresis):
8 µm
R MPE
(Repeatability):
3 µm
Mass:
314 g
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:
Yes
Coaxial revolution counter:
Yes
Shockproof:
Yes
Variants
Accessories

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 1 Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 80mm, 0,01mm 3060A-19 Click to open the PDF document
Product Document 2 Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 80mm, 0,01mm 3060A-19 Click to open the PDF document
