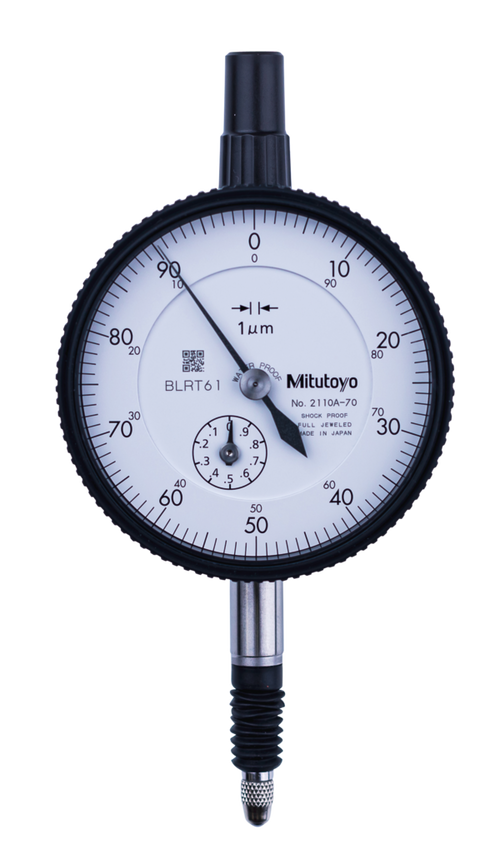

Dial Gauge, Lug Back, ISO Type IP64, Jewelled Bearing, Shockproof, 1mm, 0,001mm 2110A-70

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ISO Type IP64, Jewelled Bearing, Shockproof, 1mm, 0,001mm 2110A-70

Name: Dial Gauge, Lug Back, ISO Type IP64, Jewelled Bearing, Shockproof, 1mm, 0,001mm 2110A-70
Brand: Mitutoyo
SKU: 2110A-70
Price: 105.7 GBP
Availability: InStock

MitutoyoSKU: 2110A-70

All prices exclude VAT, which will be added at checkout.

Price:

£105.70 £151.00

Quantity:

Standard Type, 1 mm Range, 0,001 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2110A-70
Measuring Range	1mm
Graduation	.001mm
Accuracy	.005mm
Unit of Measurement	Metric
Measuring Force	≤1.8N
Type	Lug Back
Repeatability	.001mm
Dial Reading	+/-0-100
Dial Face Size Ø	57mm
Hysteresis	.002mm
Stem	8mm
Stem Diameter	8mm
Back	Centre Lug Back
Range Per Rev	.1mm
Scale	±0-100
Calibration Code	CAL14 B1

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	1 mm
Range per rev.:	0.1 mm
Dial reading:	±0-100
Graduation:	0.001 mm
Measuring force:	0,4-2
MPE any 1/10 revolution:	2.5 µm
MPE any 1/2 revolution:	4 µm
MPE any 1 revolution:	4.5 µm
MPE measuring range:	5 µm
H MPE (Hysteresis):	2 µm
R MPE (Repeatability):	1 µm
Mass:	150 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
Double scale spacing:	Yes
Shockproof:	Yes
