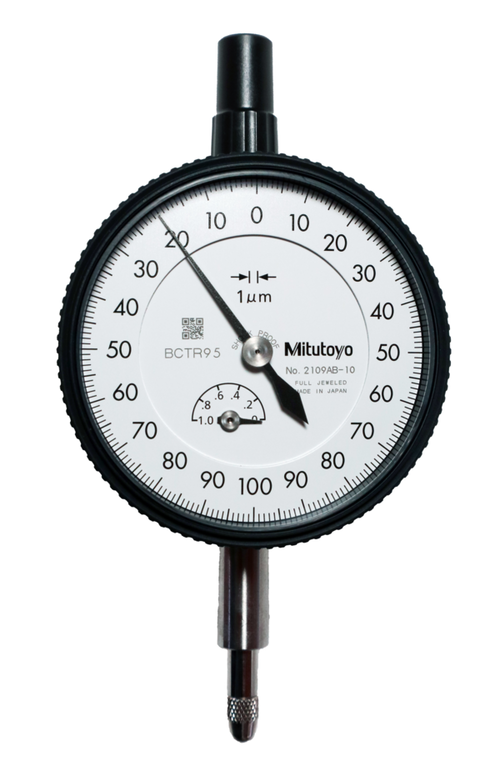

Mitutoyo Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109A-10
Mitutoyo Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109A-10
Mitutoyo Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109A-10
Mitutoyo Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109A-10
Roll over image to zoom in Click on image to zoom
Mitutoyo Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109A-10Mitutoyo Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109A-10Mitutoyo Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109A-10Mitutoyo Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109A-10

Mitutoyo Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109A-10

MitutoyoSKU: 2109A-10
List price: £99.00 Offer price: £72.00 Excluding VAT
Standard Type, 1 mm Range, 0,001 mm Graduation

This is a standard dial indicator. It offers you the following benefits:
  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
Features
Digital/Analog:
Analog
Inch-Metric:
Metric
Functions:
ISO type
Delivered:
With certificate of inspection
Range:
1 mm
Range
per rev.:
0.2 mm
Dial reading:
0-100-0
Graduation:
0.001 mm
Measuring force:
0,4-1,5
MPE any 1/10
revolution:
2.5 µm
MPE any 1/2
revolution:
4 µm
MPE any 1
revolution:
4.5 µm
MPE measuring range:
5 µm
H MPE
(Hysteresis):
2 µm
R MPE
(Repeatability):
1 µm
Mass:
139 g
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
Balanced dial:
Yes
Shockproof:
Yes

No technical information is currently available.

No application information is currently available.
