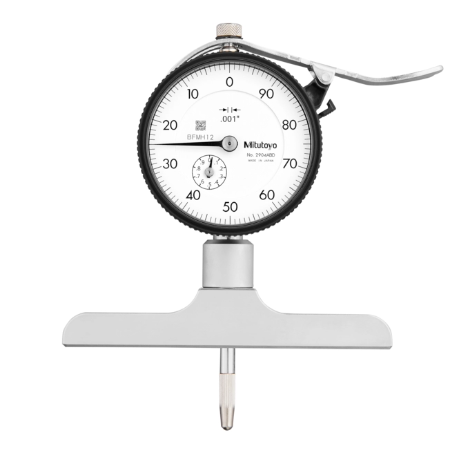

Mitutoyo; Dial Depth Gauge
| Digital/Analog: |
Analog
|
| Graduation: |
0,001"
|
| Inch-Metric: |
Inch
|
| Range: |
0 - 8 "
|
| Accuracy: |
±0,002"
|
| Stroke: |
1" mm
|
| Base flatness: |
5 µm
|
| Probe tip: |
Ball, R = 1.5 mm (No. 21JZA242)
|
| Extension rods: |
1, 2, 4"
|
| Mass: |
320 g
|
| Delivered: |
In a box without spindle lifting lever, with carbide tipped ball point contact element (21JZA242), extension rods (3 pcs.)
|
