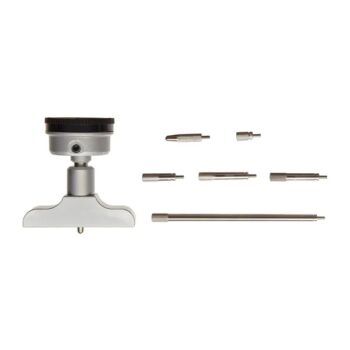

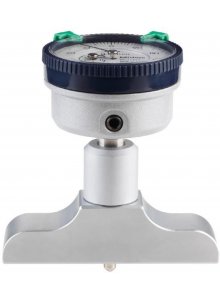

7231A Mitutoyo Dial Depth Gauge: 0-200mm
The Mitutoyo 7231A Dial Depth Gauge has the following specifications:
- Range: 0-200mm
- Graduation: 0.01mm
- Stroke: 5mm
- Accuracy: ± 0.015mm
- Extension rod: 5pcs.(10, 20, 30, 30, & 100mm)
- Base (W x T): 63.5 x 16mm
- Flatness: 5um
Features:
- Wide probing range is available with the supplied extension rod.
- Bottom surface of the base is hardened, ground and lapped for highest degree of flatness
- Designed with a back-plunger type dial indicator for upward facing readings. (7231A, 7237A, 7238A)
