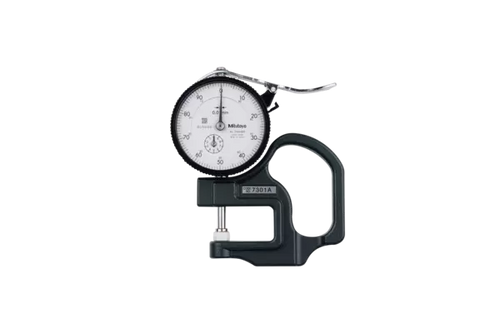

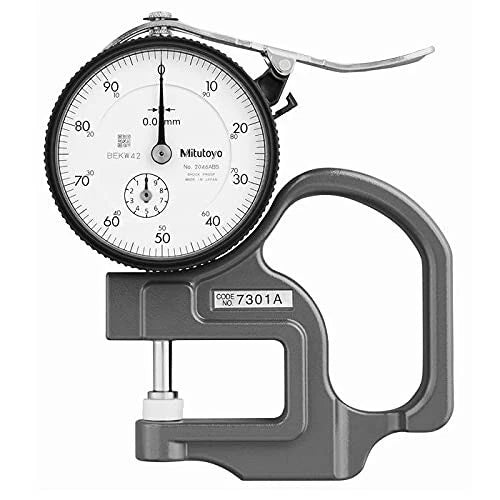

Name: Dial Indicator Thickness Gauge 0-10mm, 0,01mm, Standard, Ceramic Contact Elements 7301A
Brand: Mitutoyo
SKU: 7301A
Price: 85.0 GBP
Availability: InStock

Dial Indicator Thickness Gauge 0-10mm, 0,01mm, Standard, Ceramic Contact Elements 7301A

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 1 Dial Indicator Thickness Gauge 0-10mm, 0,01mm, Standard, Ceramic Contact Elements 7301A Click to open the PDF document

Product Document 2 Dial Indicator Thickness Gauge 0-10mm, 0,01mm, Standard, Ceramic Contact Elements 7301A Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Inch-Metric:	Metric
Functions:	Ceramic disc contact points
Delivered:	In a box with spindle lifting lever 21AZB149
Range:	0 - 10 mm
Graduation:	0.01 mm
Graduation:	0.01
Parallelism:	5 µm
Indicator No.:	2,046AB
Max. measuring depth:	30 mm
Measuring force:	? 1,4 N
Mass:	205 g
Contact point:	Thread M 2.5 x 0.45 mm
Type:	Ceramic disc contact points
