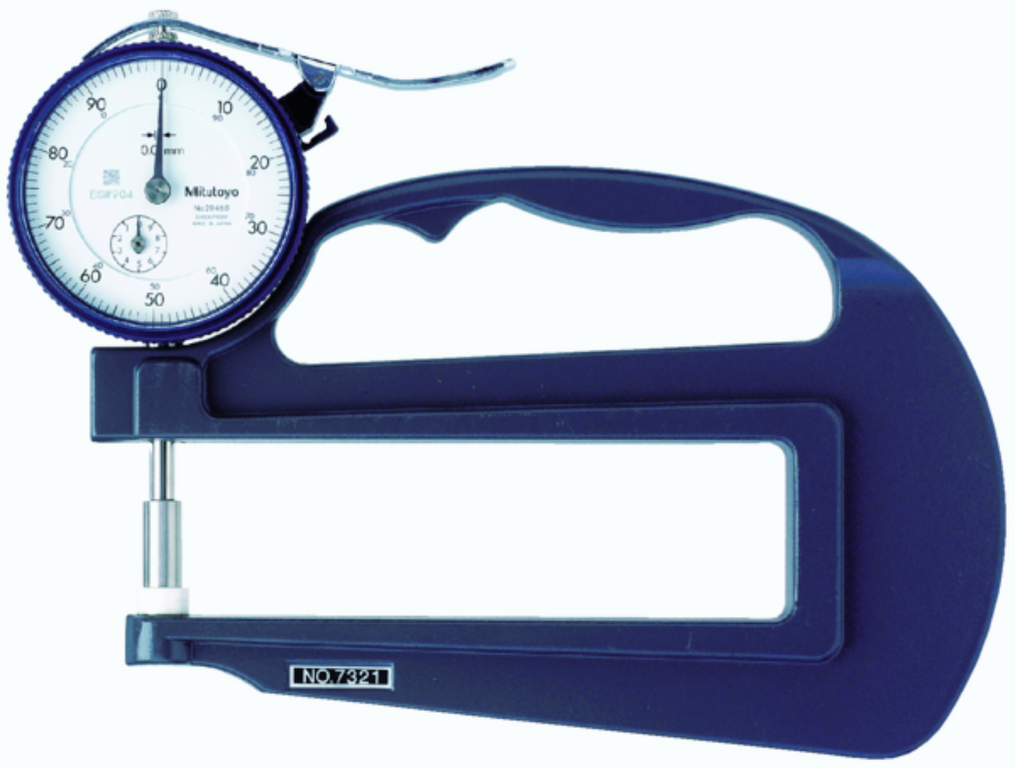

Dial Indicator Thickness Gauge 0-10mm, 0,01mm, 120mm Throat, Ceramic Contact Elements, 7321A
This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper, etc. with flat contact points, resp. lens thickness or groove depth.
Specification
- Inch-Metric: Metric
- Functions: Ceramic disc contact points
- Range: 0 - 10
- Graduation: 0.01 mm
- Accuracy: ±0,015 mm
- Parallelism: 5 µm
- Indicator No.: 2,046AB
- Max. measuring depth: 120 mm
- Mass: 220 g
- Contact point: Thread M 2.5 x 0.45 mm
- Type: Large jaw capacity and ceramic disc contact points
All images are for representation only.
No technical information is currently available.
No application information is currently available.
