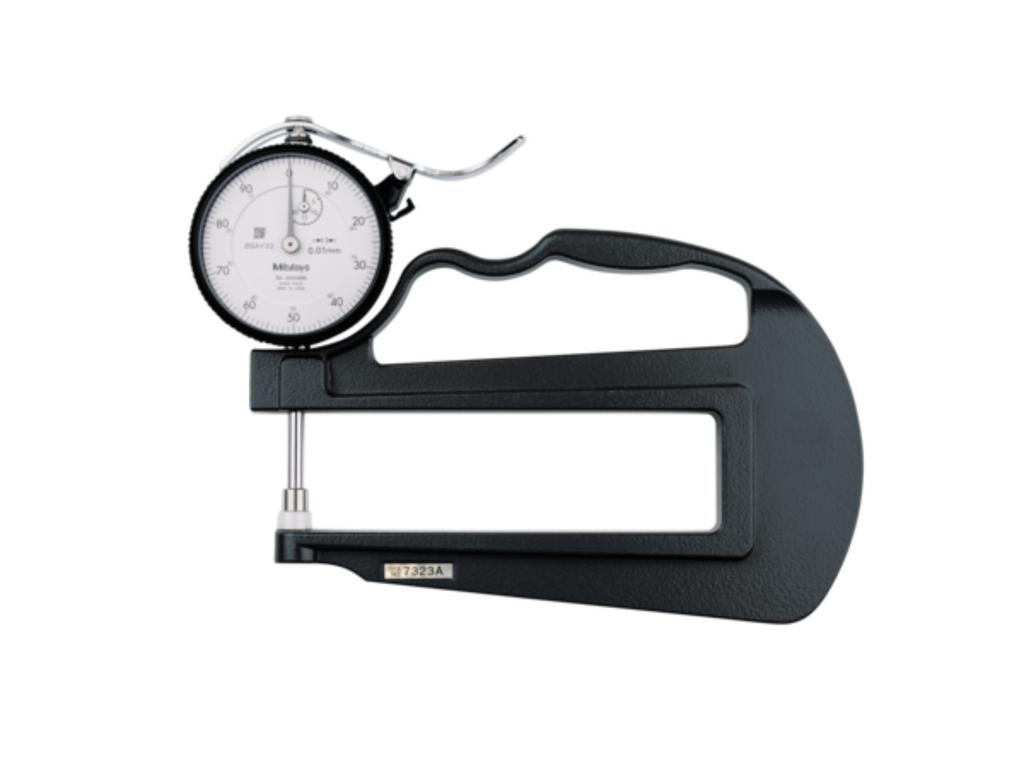

Dial Indicator Thickness Gauge, 120mm Throat, 0-20mm 7323A

Roll over image to zoom in Click on image to zoom

Dial Indicator Thickness Gauge, 120mm Throat, 0-20mm 7323A

Name: Dial Indicator Thickness Gauge, 120mm Throat, 0-20mm 7323A
Brand: Mitutoyo
SKU: 7323A
Price: 119.0 GBP
Availability: InStock

MitutoyoSKU: 7323A

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£119.00 £163.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Dial Indicator Thickness Gauge 0-20mm, 0,01mm, 120mm Throat, Ceramic Contact Elements, 7323A

This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper, etc. with flat contact points, resp. lens thickness or groove depth.

Specification

Inch-Metric: Metric
Functions: Ceramic disc contact points
Range: 0 - 20 mm
Graduation: 0.01 mm
Accuracy: ±0,022 mm
Parallelism: 5 µm
Indicator No.: 2,050AB
Max. measuring depth: 120 mm
Mass: 355 g
Contact point: Thread M 2.5 x 0.45 mm
Type: Large jaw capacity and ceramic disc contact points

All images are for representation only.

Product Information
Part Number	7323A
Measuring Ranges	0-20mm
Resolution	0.01mm
Graduation	.01mm
Accuracy	+/-.022mm
Unit of Measurement	Metric
Measuring Force	≤2N
Anvils	10mm Ceramic flat anvils
Manufacturer	Mitutoyo
