Dial Indicator Thickness Gauge, Groove Depth, 0-.5" 7316A

Roll over image to zoom in Click on image to zoom

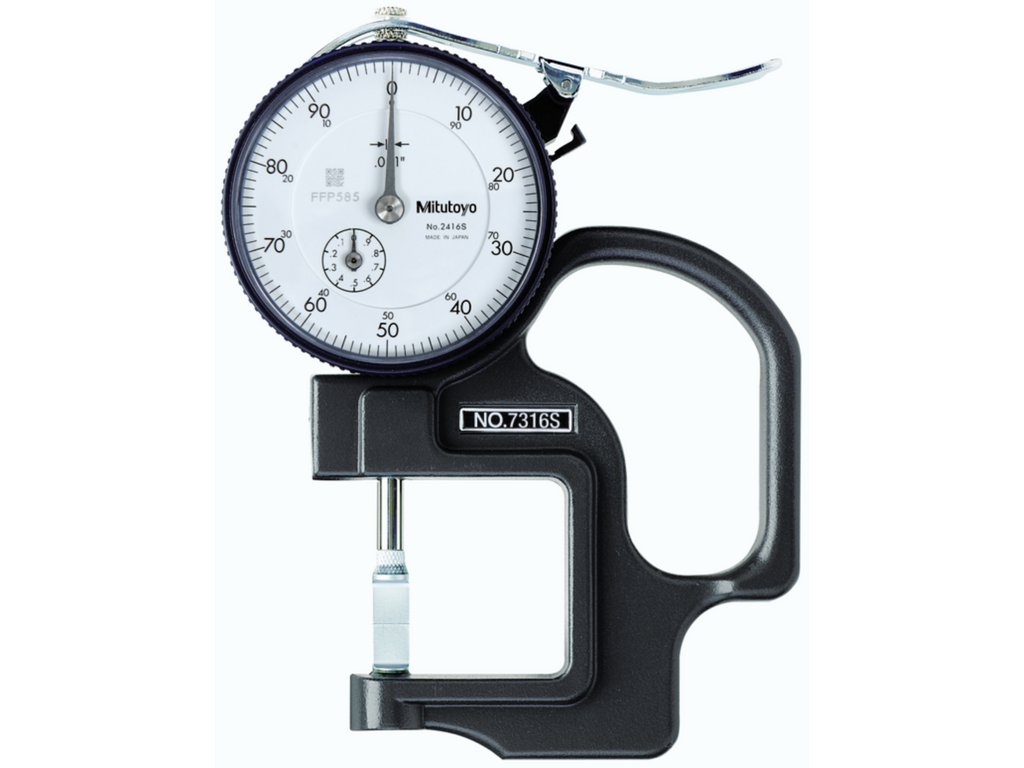

Dial Indicator Thickness Gauge, Groove Depth, 0-.5" 7316A

Name: Dial Indicator Thickness Gauge, Groove Depth, 0-.5" 7316A
Brand: Mitutoyo
SKU: 7316A
Price: 123.0 GBP
Availability: InStock

MitutoyoSKU: 7316A

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£123.00 £168.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Dial Indicator Thickness Gauge 0-0.05", 0,001", Groove Depth, Ceramic Contact Elements, 7316A

This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.

Specification

Inch-Metric: Inch
Functions: Knife-edge contact point
Range: 0 - 0.05"
Graduation: 0.001"
Accuracy: ±0,001"
Parallelism: 5 µm
Max. measuring depth: 1.2"
Mass: 220 g
Contact point: Thread # 4-48UNF

All images are for representation only.

Product Information
Part Number	7316A
Measuring Ranges	0-0.5"
Graduation	.001"
Accuracy	.001"
Unit of Measurement	Inch
Measuring Force	≤1.4N
Anvils	Blade 1mm x 6.6mm
Manufacturer	Mitutoyo
