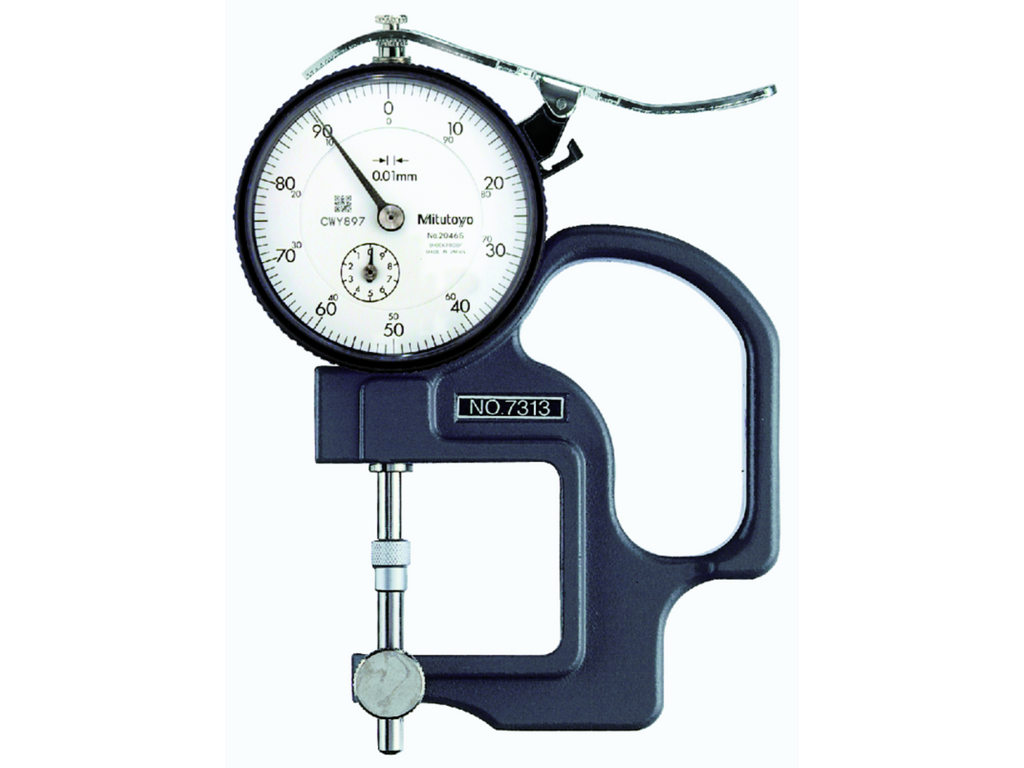

Dial Indicator Thickness Gauge, Lens Thickness, 0-10mm 7313A

Name: Dial Indicator Thickness Gauge, Lens Thickness, 0-10mm 7313A
Brand: Mitutoyo
SKU: 7313A
Price: 101.0 GBP
Availability: InStock

MitutoyoSKU: 7313A

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£101.00 £138.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Dial Indicator Thickness Gauge 0-10mm, 0,01mm, Lens Thickness, Ceramic Contact Elements, 7313A

This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.

Specification

Inch-Metric: Metric
Functions: Adjustable anvil
Range: 0 - 10 mm
Graduation: 0.01 mm
Accuracy: ±0,015 mm
Parallelism: 5 µm
Indicator No.: 2,046AB
Max. measuring depth: 30 mm
Mass: 215 g
Contact point: Thread M 2.5 x 0.45 mm
Type: Adjustable Anvil

All images are for representation only.

Product Information
Part Number	7313A
Measuring Ranges	0-10mm
Resolution	.01mm
Graduation	.01mm
Accuracy	+/-.015mm
Unit of Measurement	Metric
Measuring Force	≤1.4N
Anvils	10mm Ceramic flat anvils
Manufacturer	Mitutoyo
